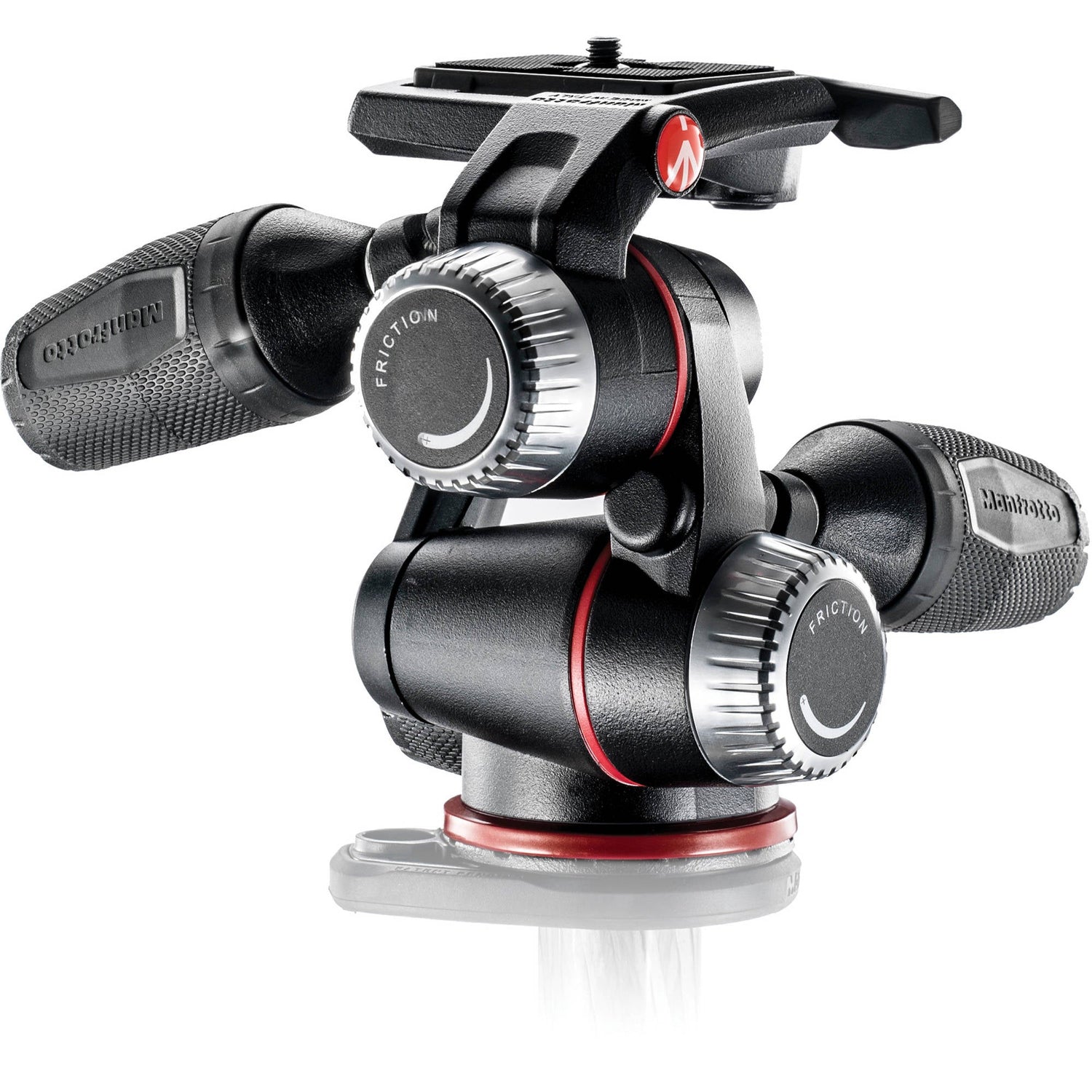

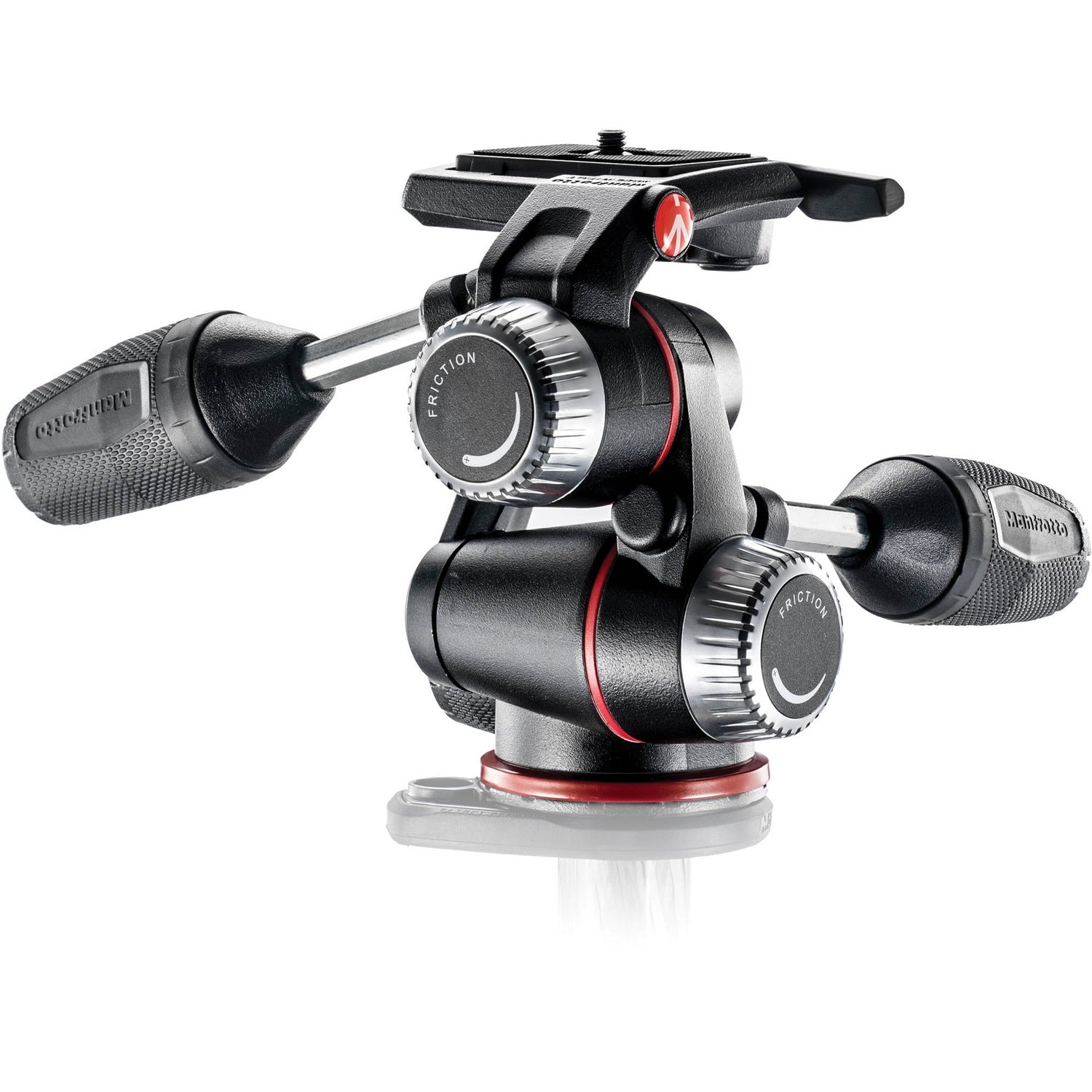

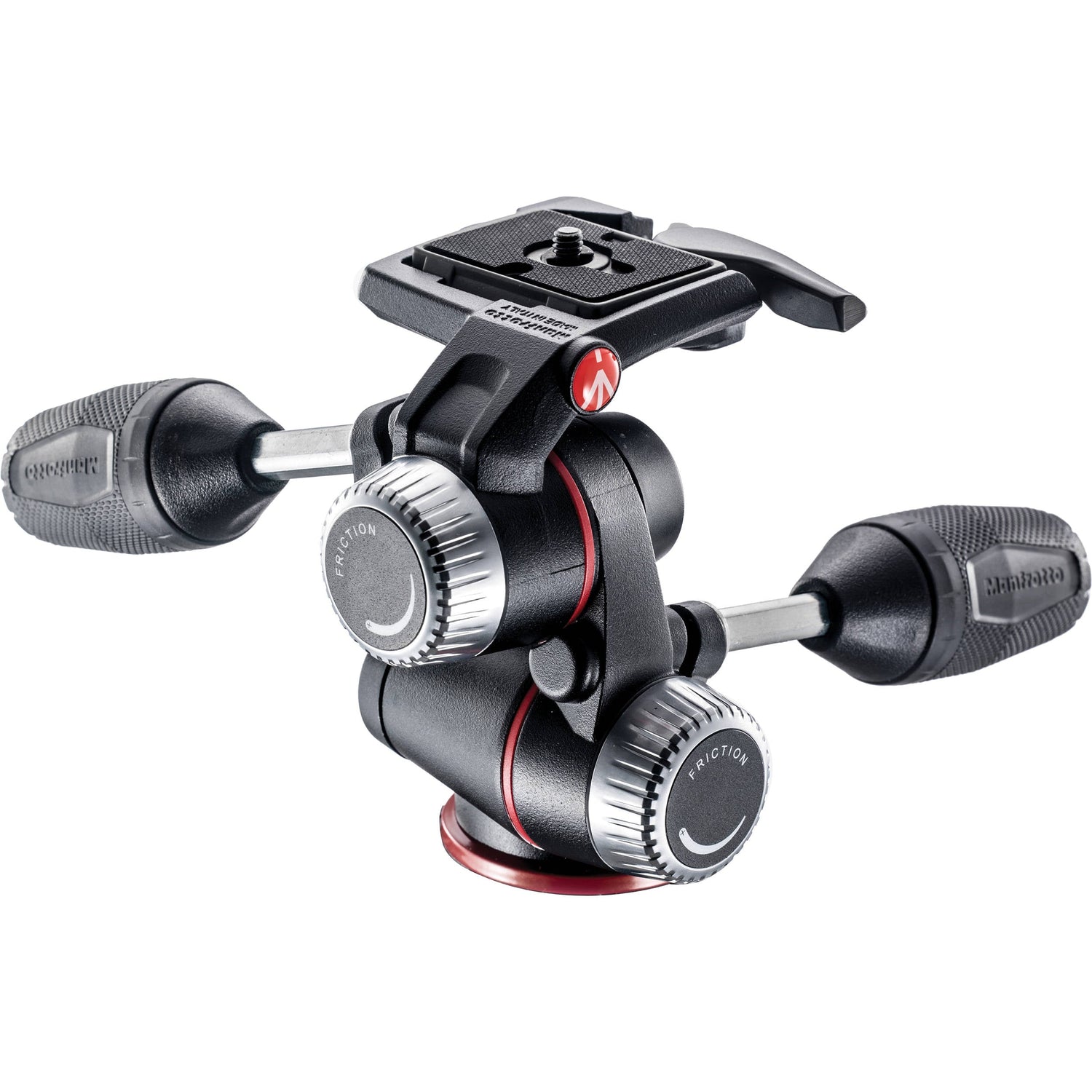

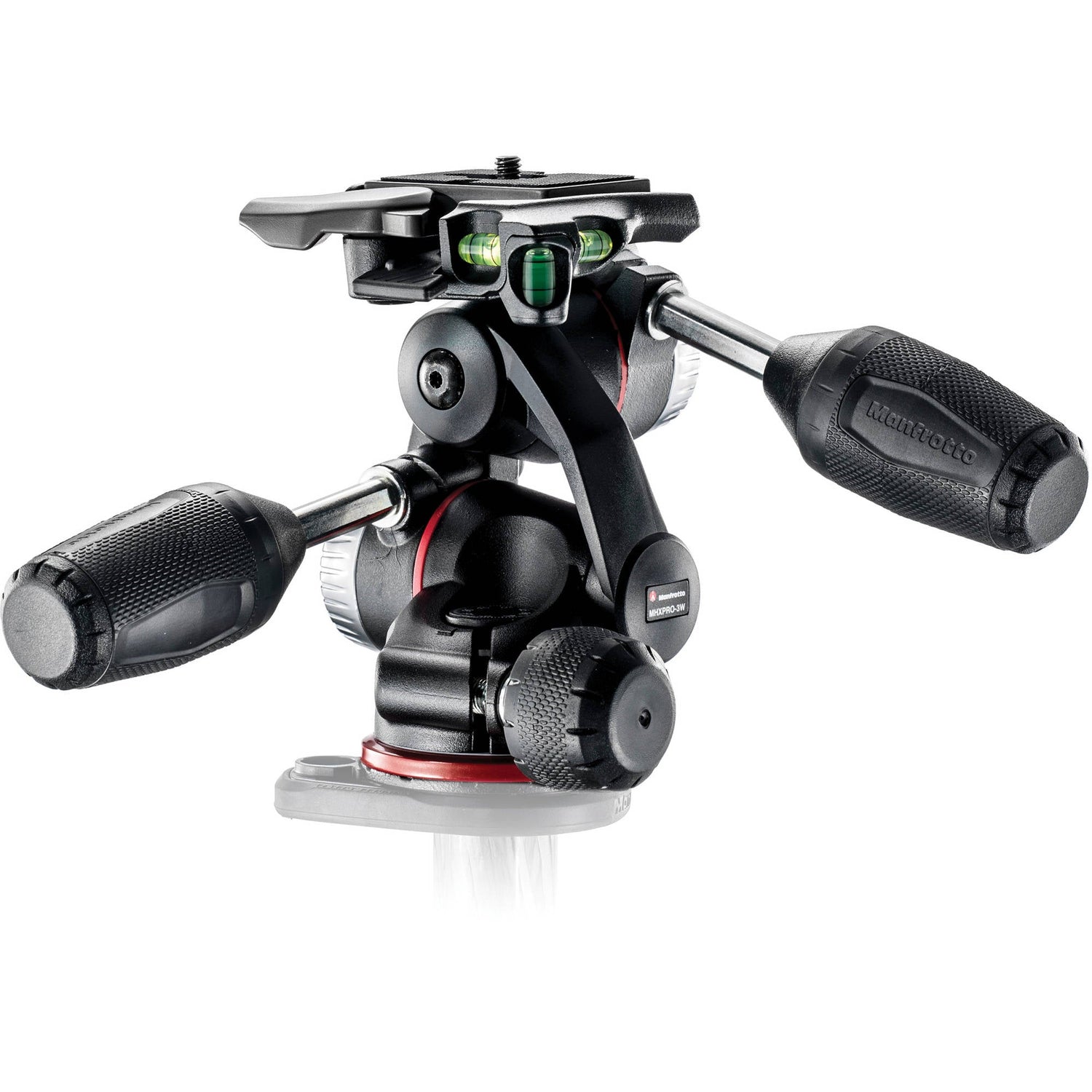

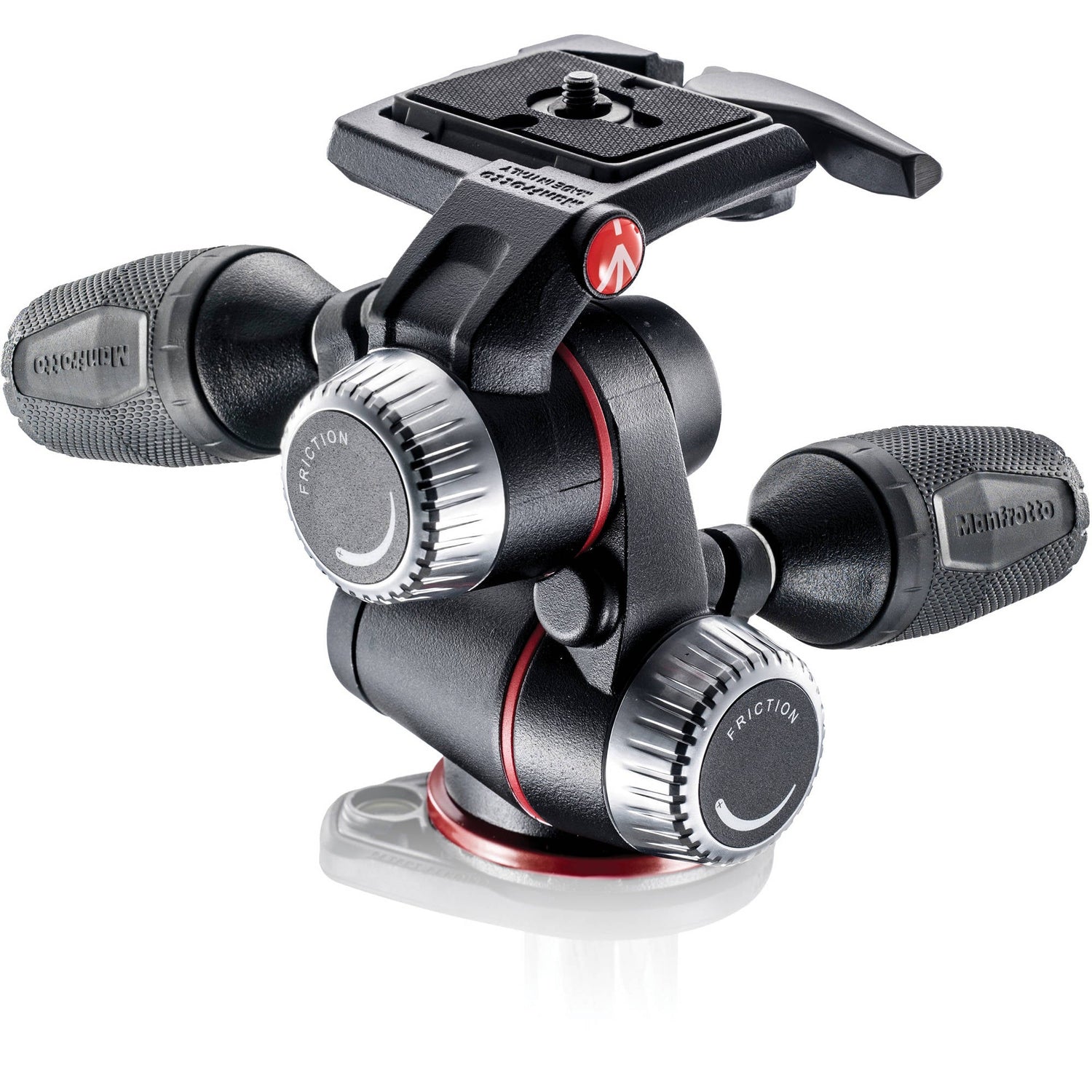

X-PRO 3-Way tripod head with retractable levers

This XPRO 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 17.6 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached. The cam lock also features a safety catch to prevent the 200PL-14, or another compatible quick release plate from accidentally disconnecting.

Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other, have dedicated control handles, and can be locked into place. In addition to integrating the ability to individually lock the movements by twisting each corresponding handle's rubberized grip, the telescoping control handles for both tilt functions can also be retracted while the head is not in use for more convenient storage or transport.

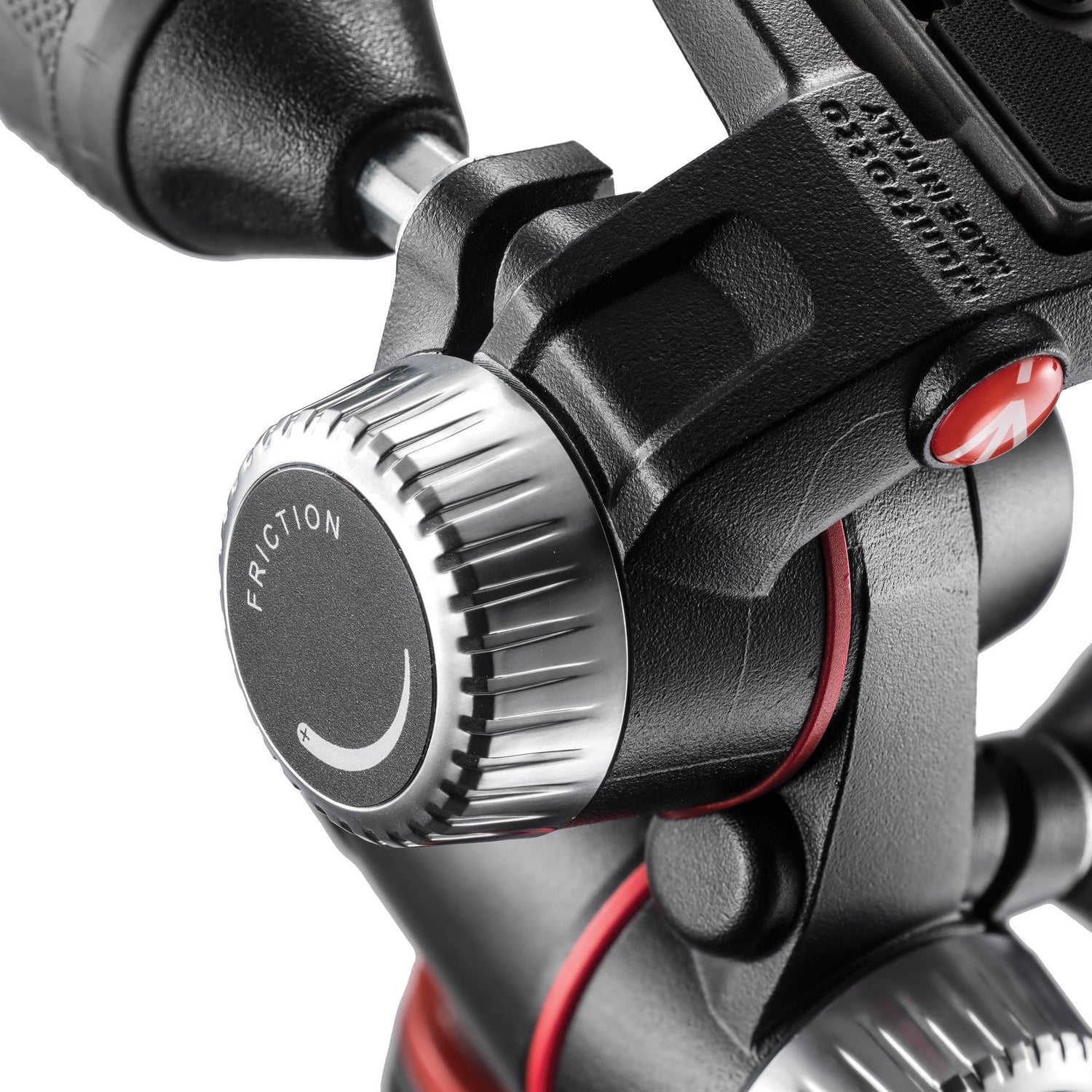

To promote fast and repeatable device positioning, this XPRO 3-Way, Pan-and-Tilt Head also includes a dedicated angle scale for rotational movements that is designed for easy visibility, as well as dedicated control knobs set under the telescoping control handles that can each be rotated to apply tension control to either the backwards and forwards, or sideways tilt movements at any time.

XPRO 3-Way, Pan-and-Tilt Head
17.6 lb load capacity
Compatible with tripods or support systems that feature a 3/8"-16 mount
Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other, have dedicated control handles, and can be locked into place

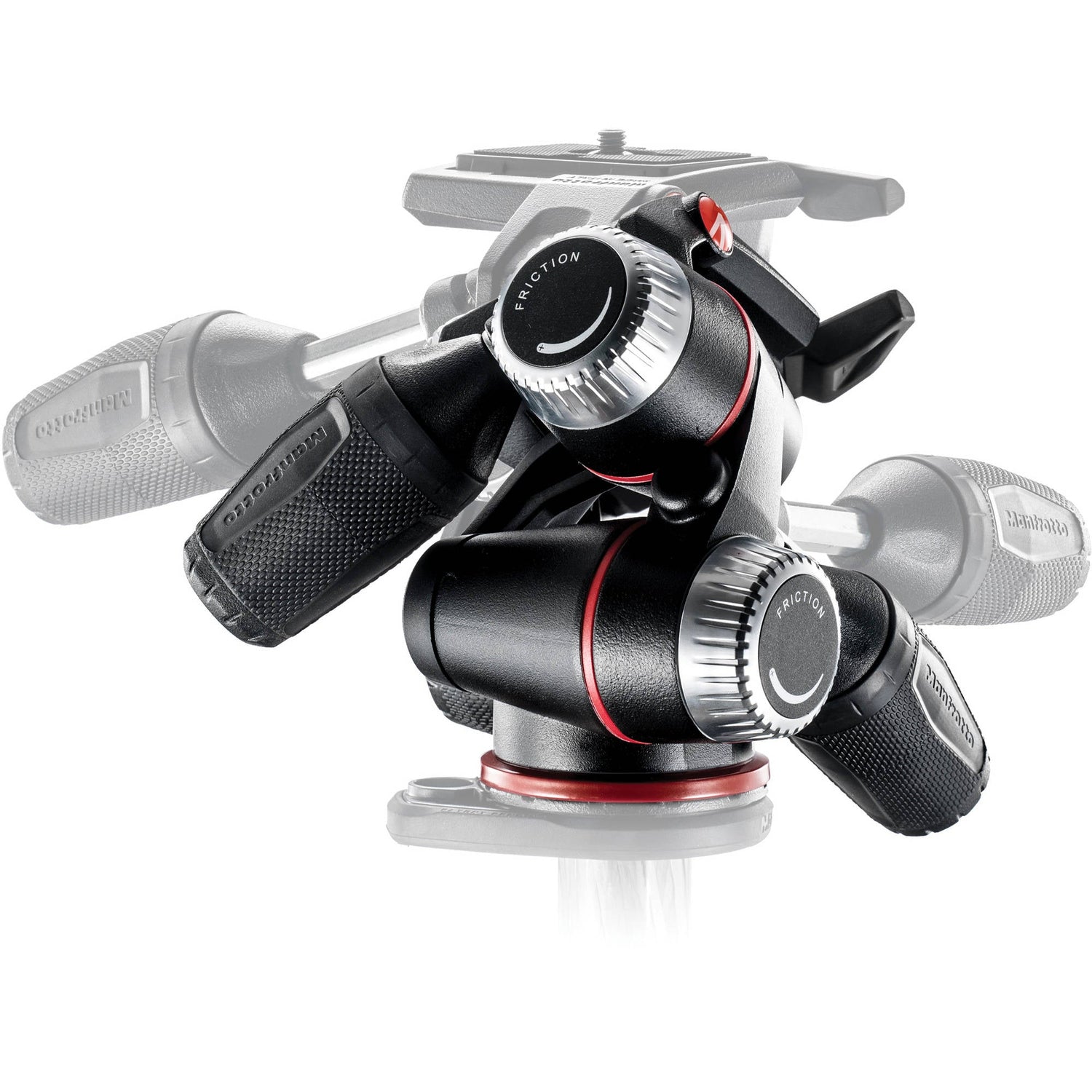

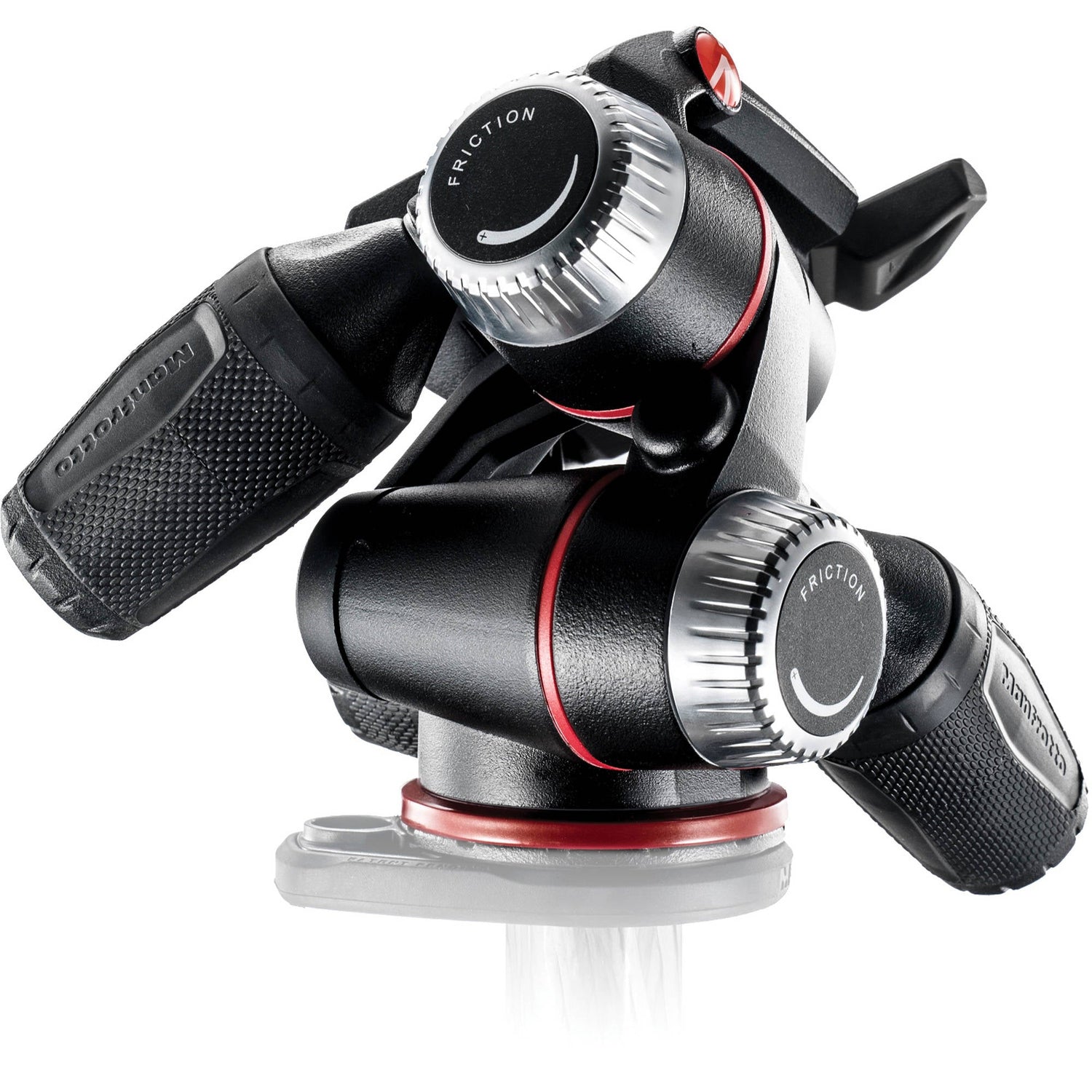

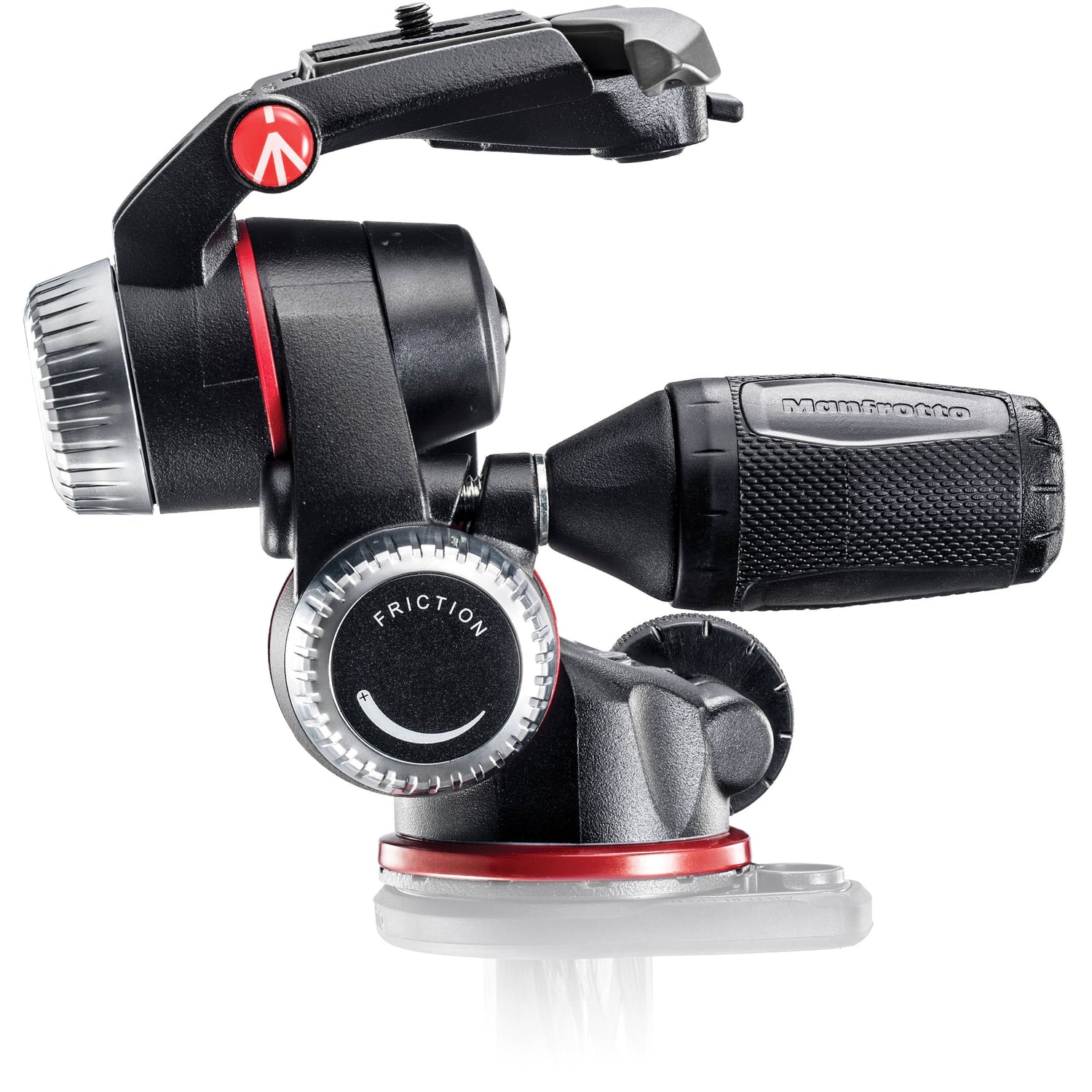

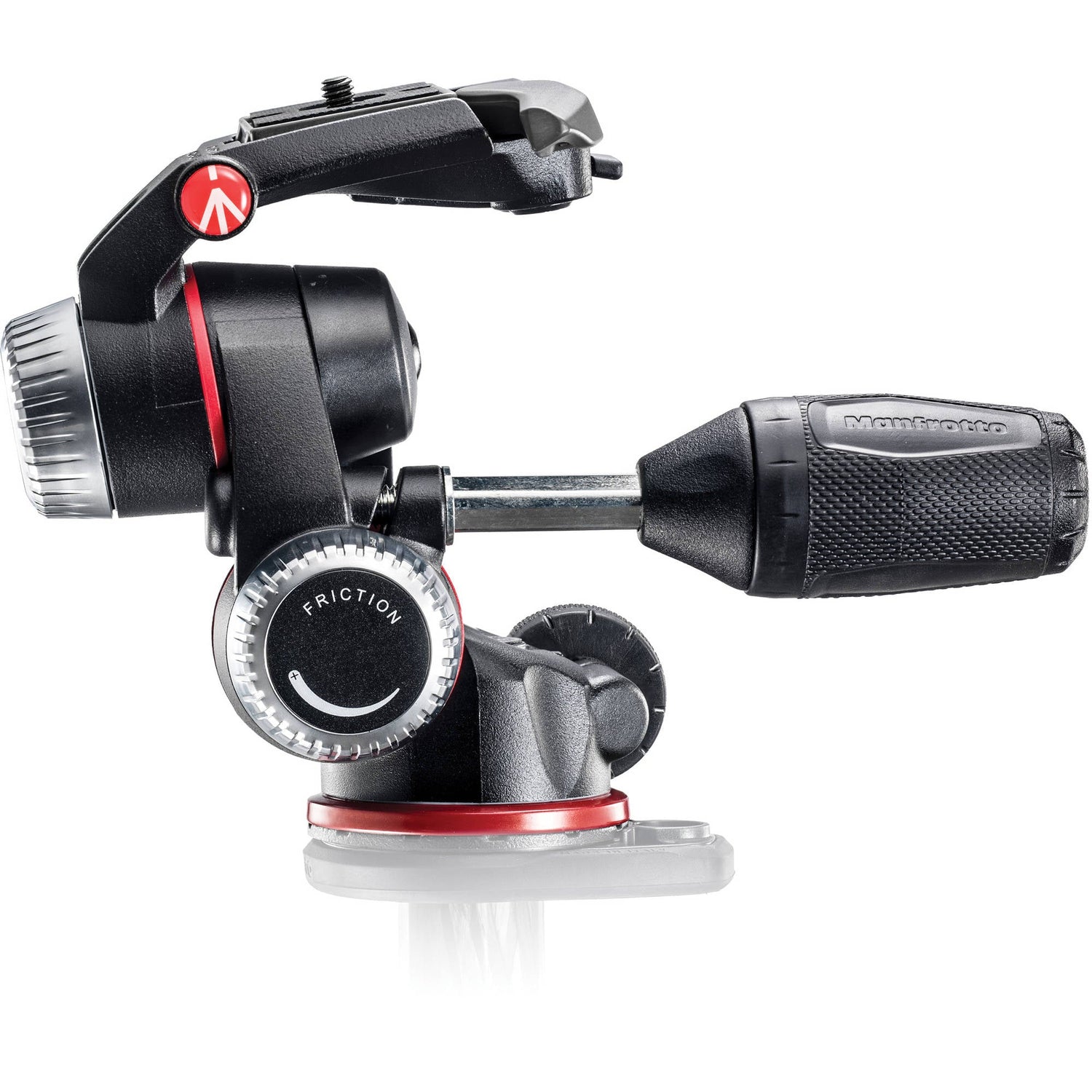

Telescoping control handles for both tilt functions can be retracted for more convenient storage or transport
Dedicated angle scale for rotational movements that is designed for easy visibility helps promote fast and repeatable device positioning

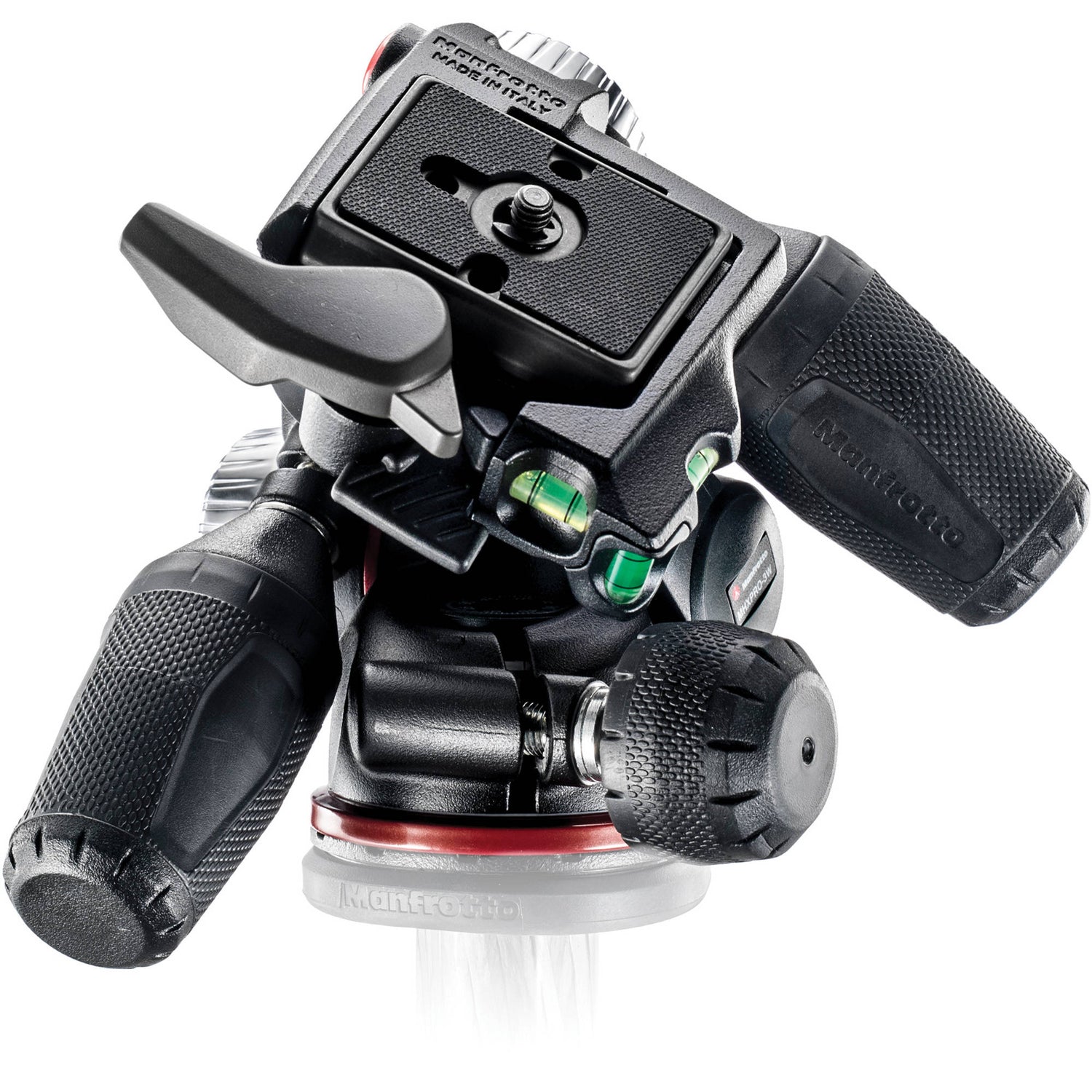

Integrated, RC2 quick release cam lock

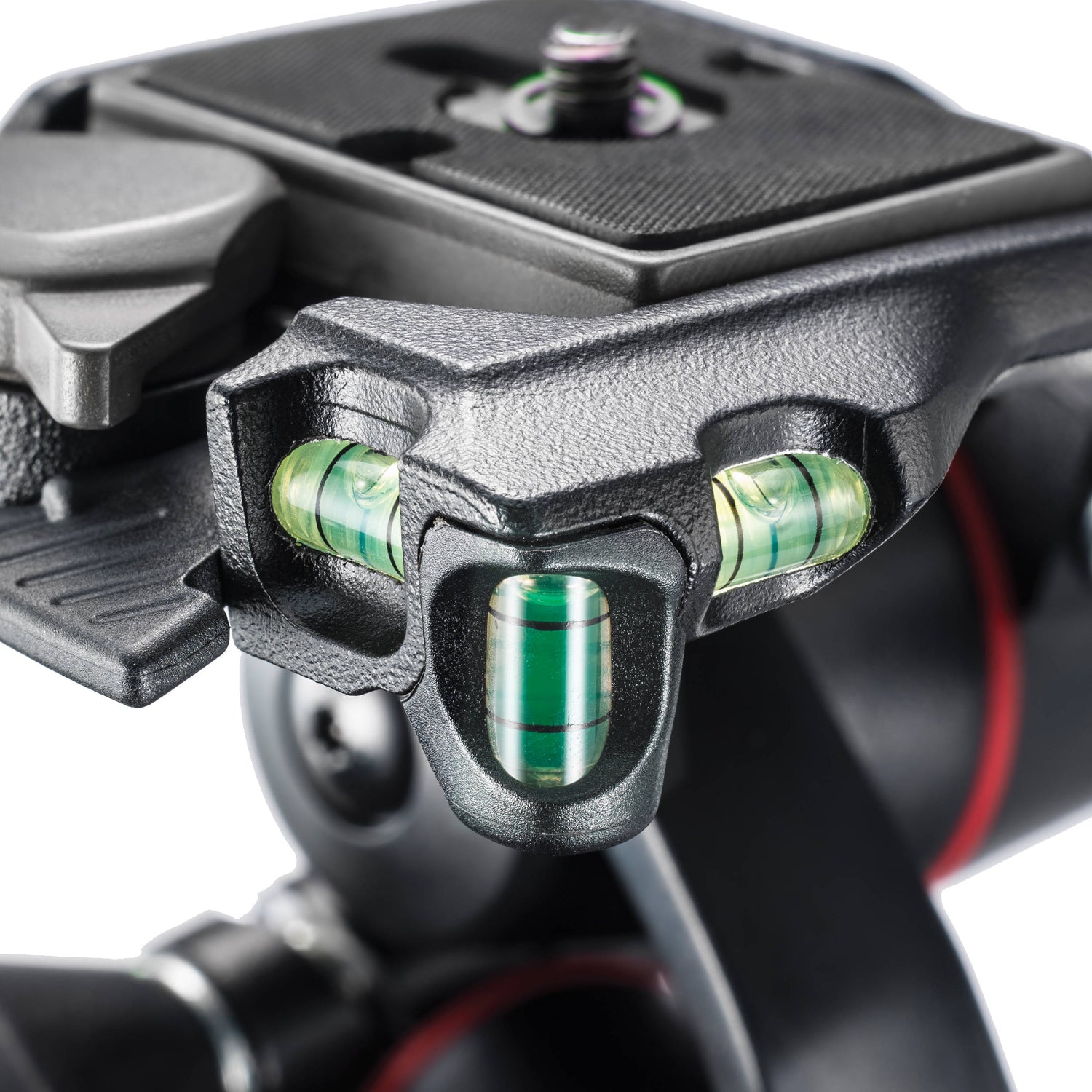

Two bubble levels for landscape orientations and one bubble level for portrait orientations
Durable, aluminum-alloy construction
Manfrotto MHXPRO-3W Specs
General
Head Type Pan & Tilt Head
Base Mount 3/8"-16 Thread
Camera Mounting Screw 1/4"-20 Male
Quick Release Plate Type 200PL-14
Load Capacity 17.6 lb / 7.98 kg
Number of Bubble Levels 3
Material Aluminum
Pan & Tilt Range
Lateral Tilt -90° to +30°
Vertical Tilt -30° to +90°
Panning Range 360°
Physical
Dimensions H: 5.1" / H: 13.0 cm
Weight 2.2 lb / 998 g
Packaging Info
Package Weight 2.82 lb
Box Dimensions (LxWxH) 6.5 x 6.4 x 6.2"


Manfrotto XPRO 3-Way, Pan-and-Tilt Head with 200PL-14 Quick Release Plate
200PL-14 Quick Release Plate
