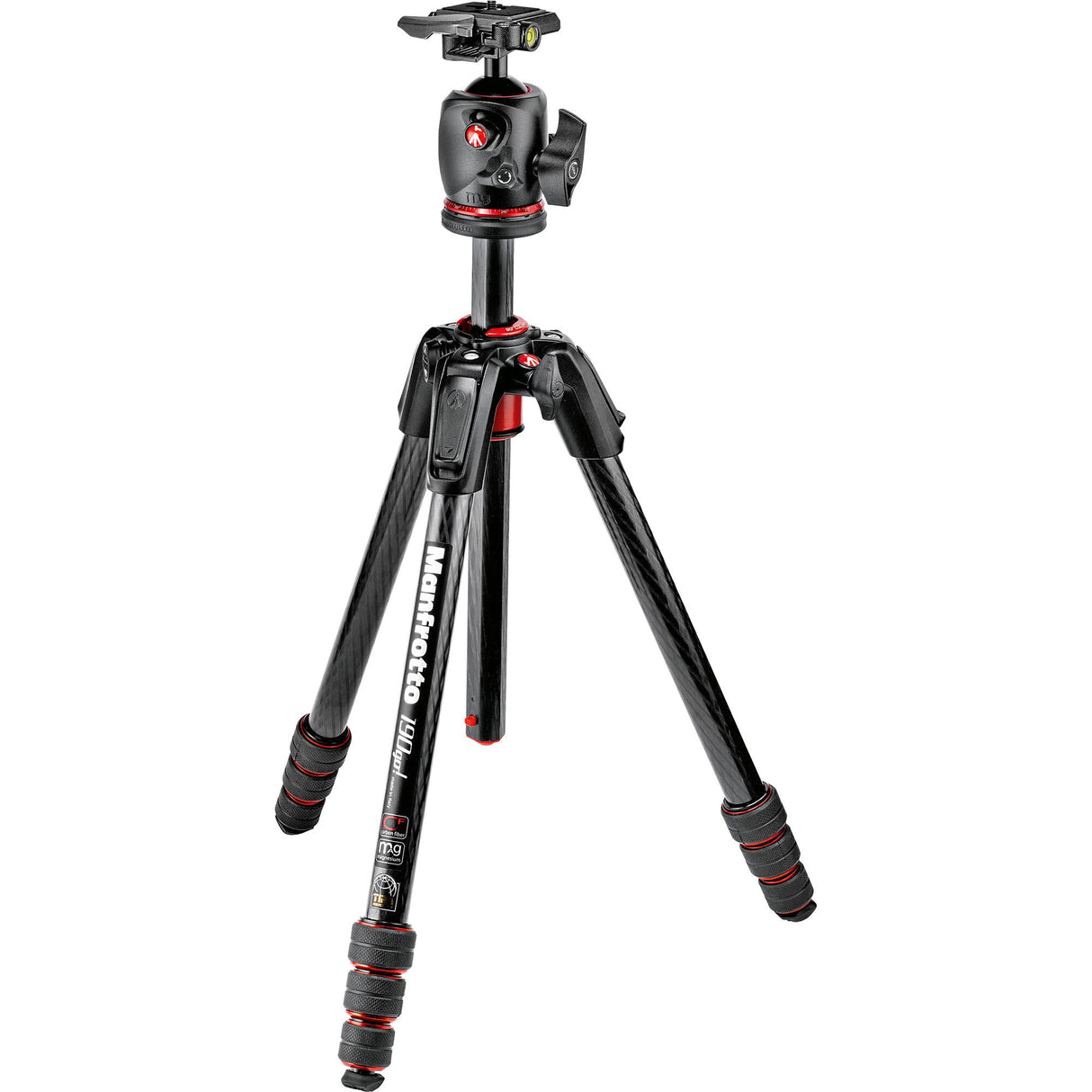

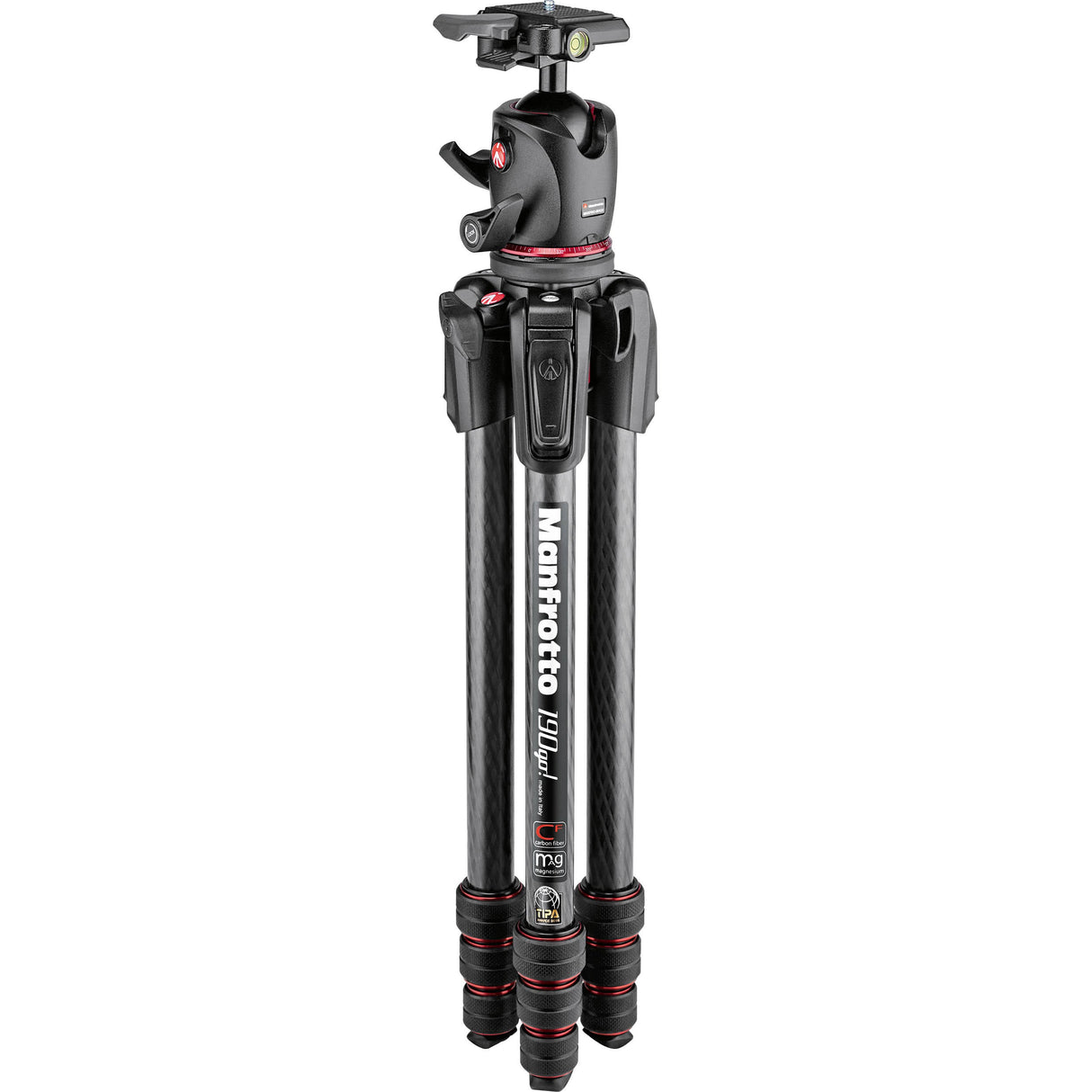

Manfrotto 190go! Carbon Fiber M-Series Tripod with MHXPRO-BHQ2 XPRO Ball Head RC2 Kit

This XPRO Magnesium Ball Head from Manfrotto features an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent the 200PL-14, or another compatible quick release plate from accidentally disconnecting.

The XPRO Magnesium Ball Head with 200PL-14 Quick Release Plate has a load capacity of 22.1 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening this XPRO Magnesium Ball Head's primary locking knob, its ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Toward the ball head's base is a secondary locking knob that controls the ability to rotate the head 360°. An additional knob opposite the secondary locking knob can be rotated to apply tension control to the ball-and-socket joint's movements.

Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-14 quick release plate which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface.

XPRO Magnesium Ball Head
22.1 lb load capacity
Compatible with tripods or support systems that feature a 3/8"-16 mount
Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
Integrated RC2 quick release cam lock
Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
Secondary locking knob allows head to rotate 360°
Dedicated tension control knob for the ball-and-socket joint's movements
One bubble level for landscape orientations and one bubble level for portrait orientations
Durable, magnesium-alloy construction
200PL-14 Quick Release Plate
Compatible with Manfrotto RC2 quick release cam lock
Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
1/4"-20 mount
Durable, aluminum-alloy construction

Manfrotto XPRO Magnesium Ball Head With 200PL-14 Quick Release Plate Specs
General
Head Type Ball Head
Base Mount 3/8"-16 Thread
Camera Mounting Screw 1/4"-20 Male
Quick Release Plate Type RC2
Load Capacity 22.1 lb / 10.02 kg
Number of Bubble Levels 2
Friction Control Yes
Independent Pan Lock Yes
Material Magnesium
Pan & Tilt Range
Lateral Tilt -90° to +40°
Vertical Tilt -40° to +40°
Panning Range 360°
Physical
Ball Sphere Diameter 1.77" / 45.0 mm
Dimensions H: 4.5 x W: 2.4" / H: 115.1 x W: 60.0 mm
Weight 17.6 oz / 0.5 kg
Packaging Info
Package Weight 1.4 lb
Box Dimensions (LxWxH) 5.3 x 4.9 x 3.65"
Manfrotto 190go! Carbon Fiber M-Series Tripod Specs
General
Load Capacity 15.43 lb / 7 kg
Maximum Working Height 57.9" / 147 cm
Max Height without Center Column 48.43" / 123 cm
Minimum Working Height 3.1" / 8 cm
Folded Length 17.72" / 45 cm
Head Mount Type 3/8"-16 Screw
Weight 2.98 lb / 1.35 kg
Materials Carbon Fiber
Legs
Leg Lock Type Twist Lock
Leg Positions 4 Positions
Independent Leg Spread Yes
Leg Sections 4
Leg Diameter 0.58" / 14.7 mm
0.72" / 18.2 mm
0.85" / 21.7 mm
1.00" / 25.3 mm
Feet Features Rubber
Center Column
Center Column Shape Round
Center Column Sections 1
Center Column Extension Type Rapid
Lateral / 90-Degree Center Column Yes
Center Column Rotation 90°
Packaging Info
Package Weight 3.6 lb
Box Dimensions (LxWxH) 22 x 5 x 5"
Manfrotto XPRO Magnesium Ball Head with 200PL-14 Quick Release Plate
Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
Manfrotto 190go! Carbon Fiber M-Series Tripod
