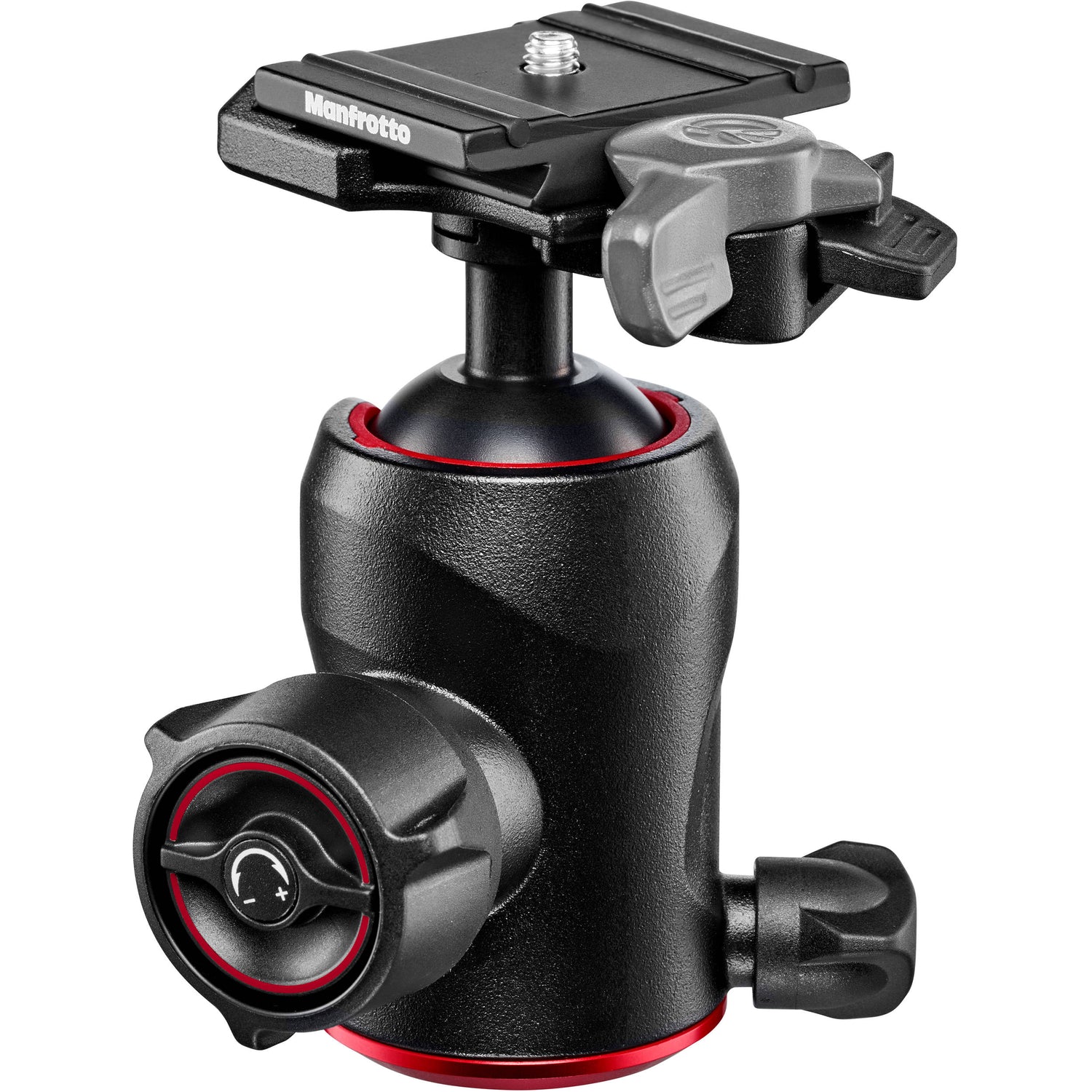

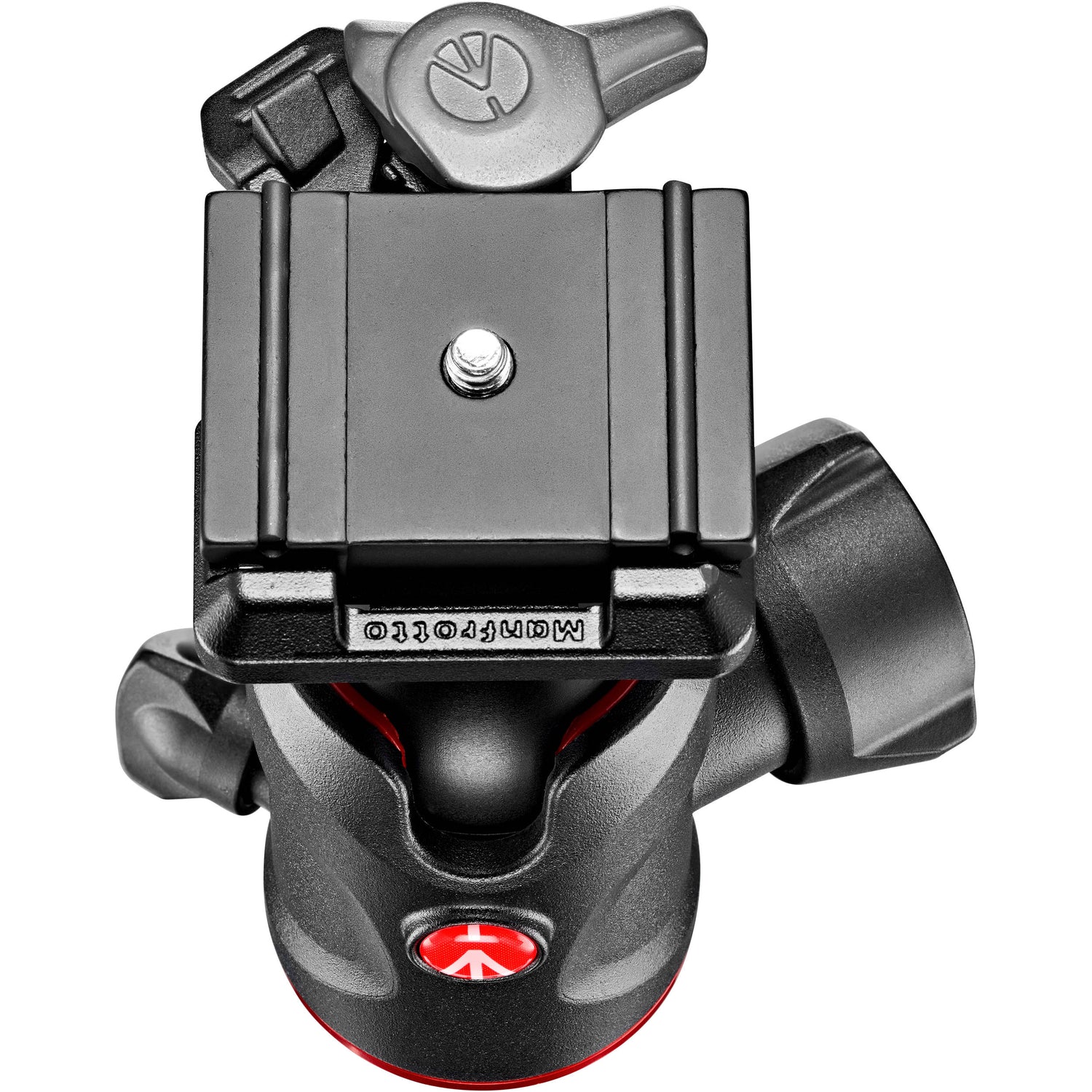

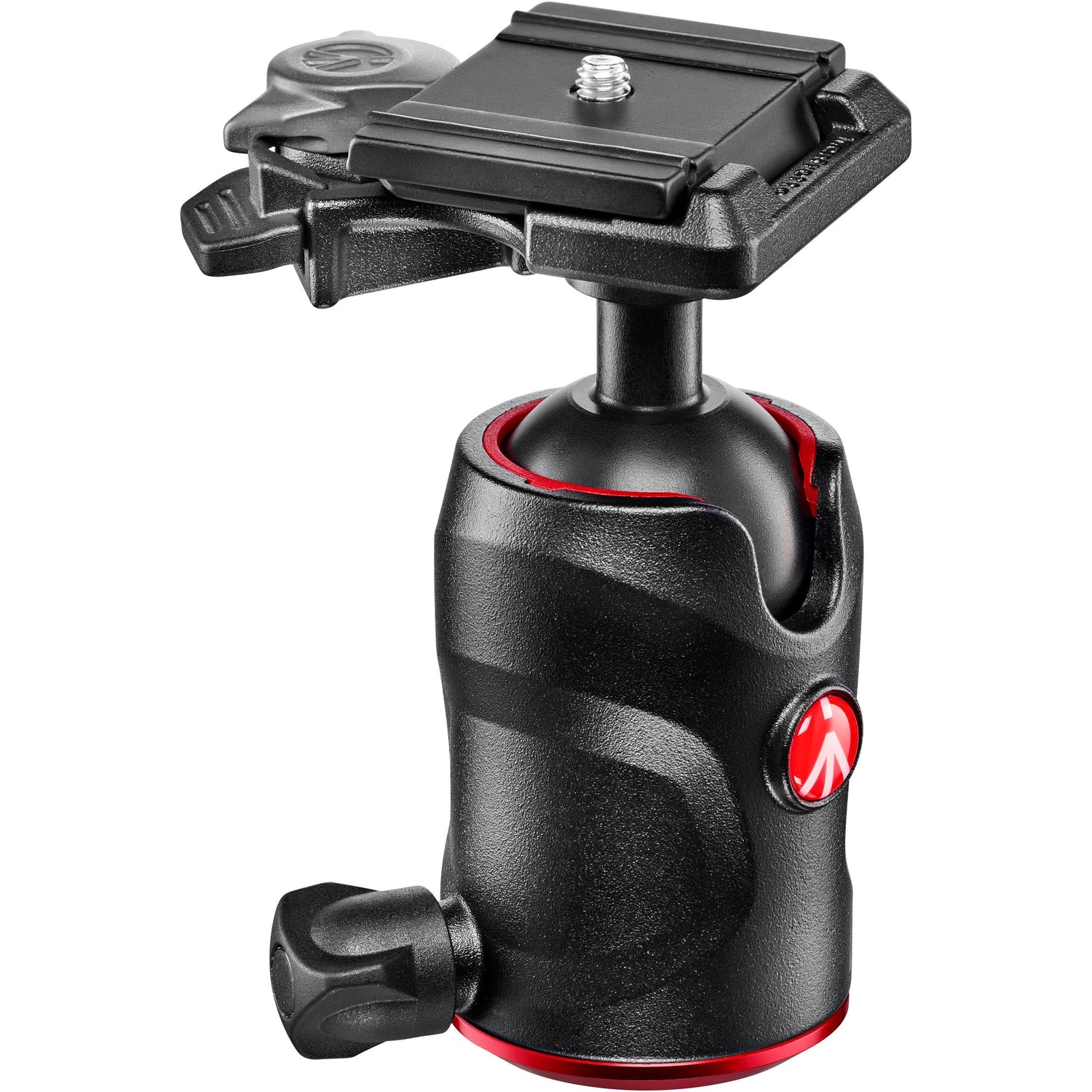

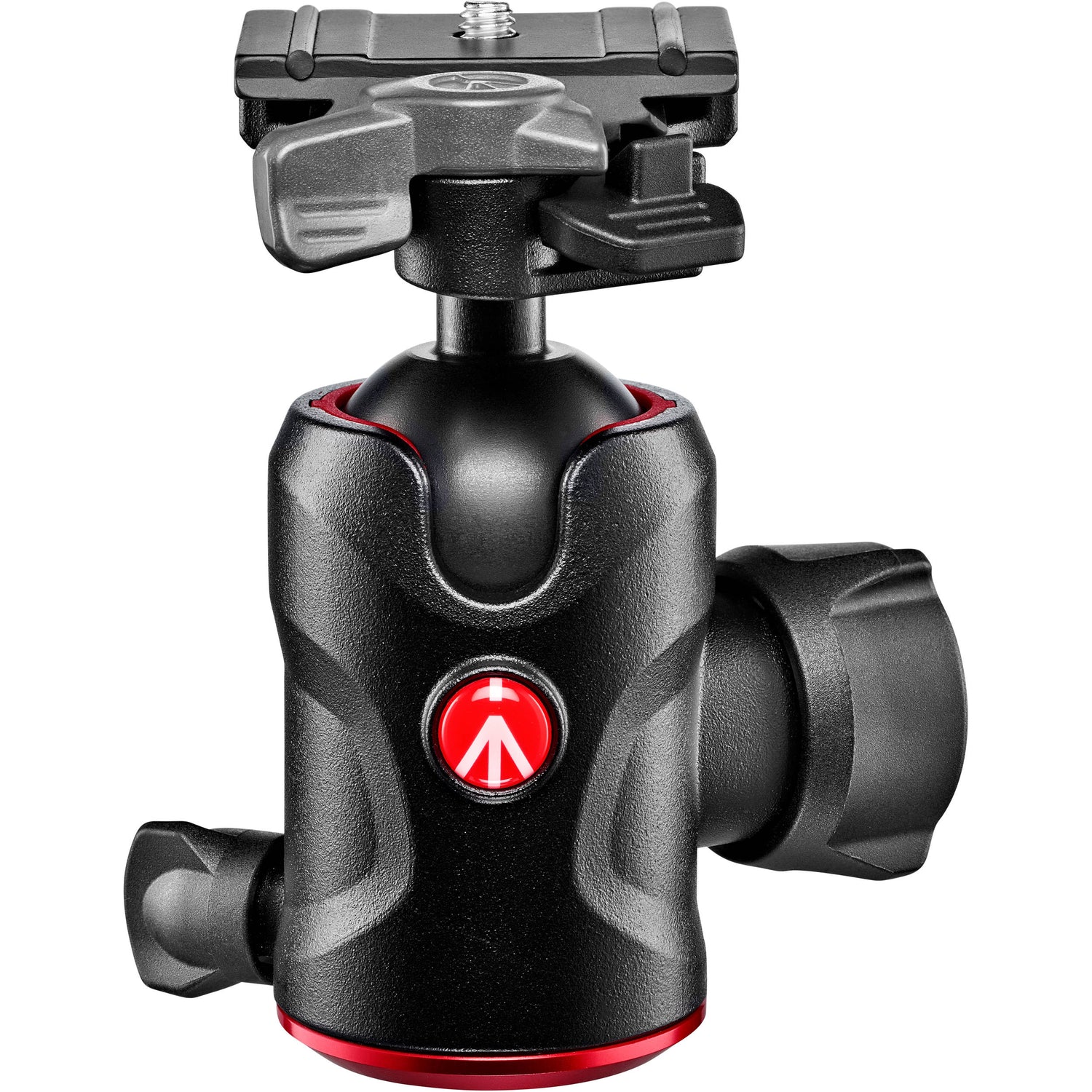

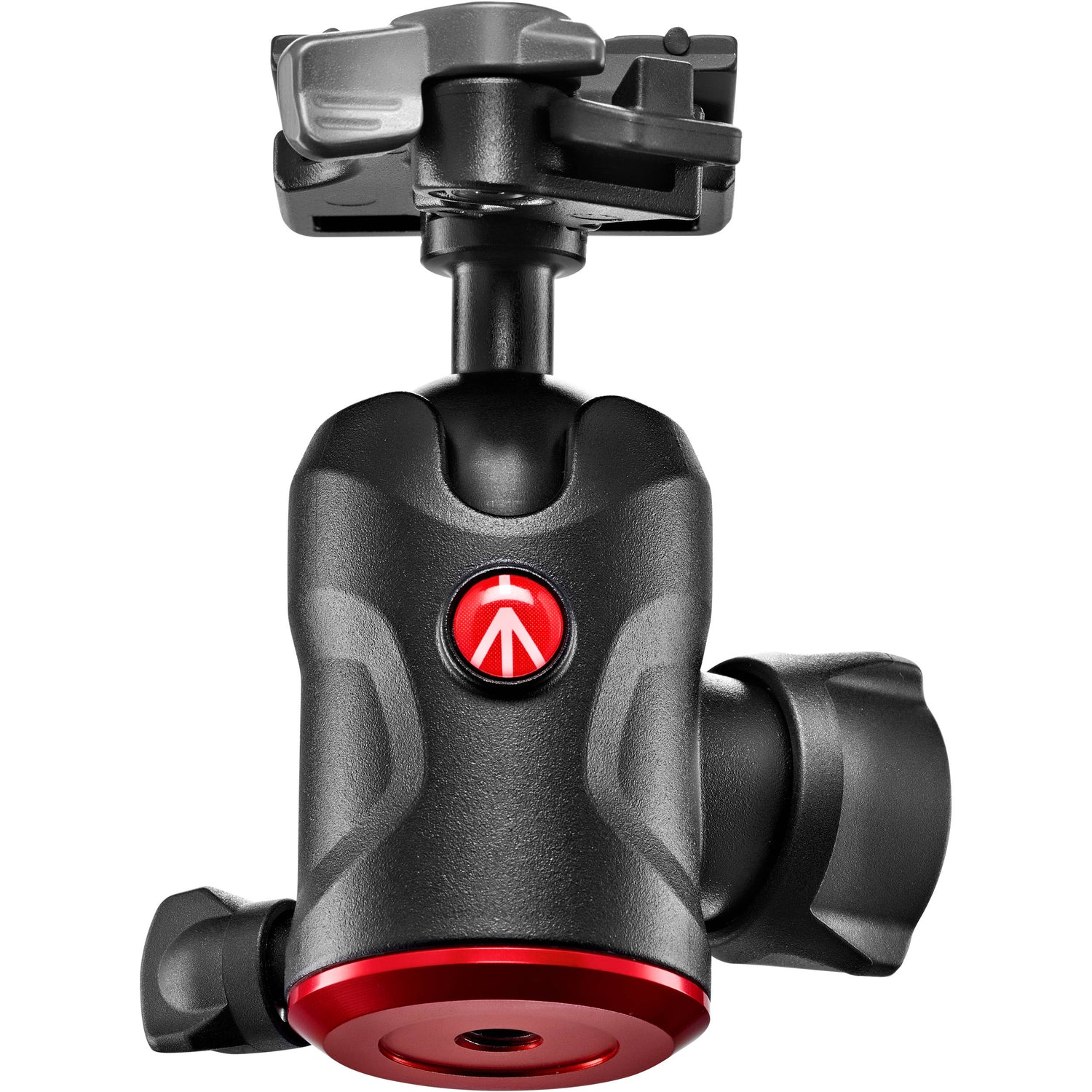

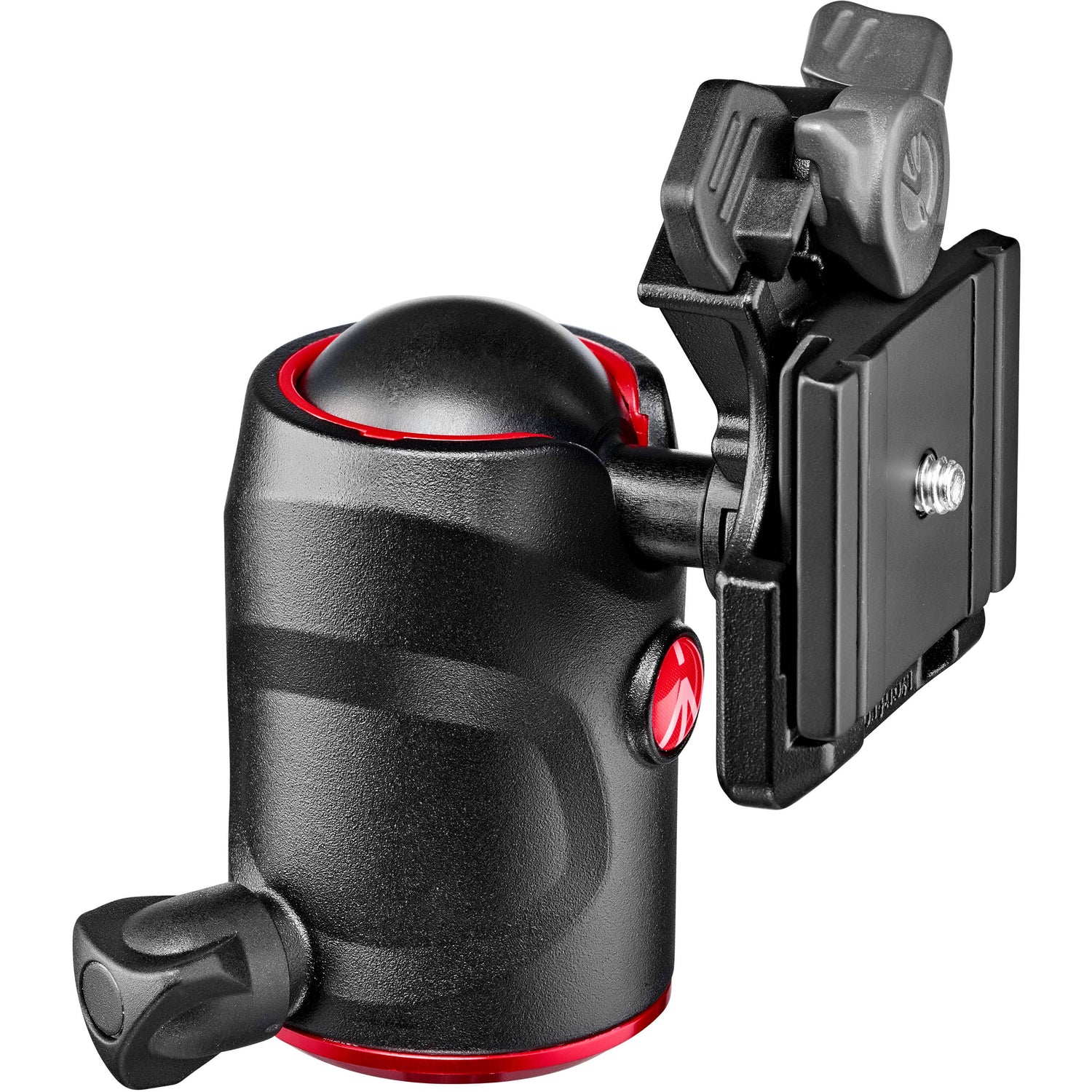

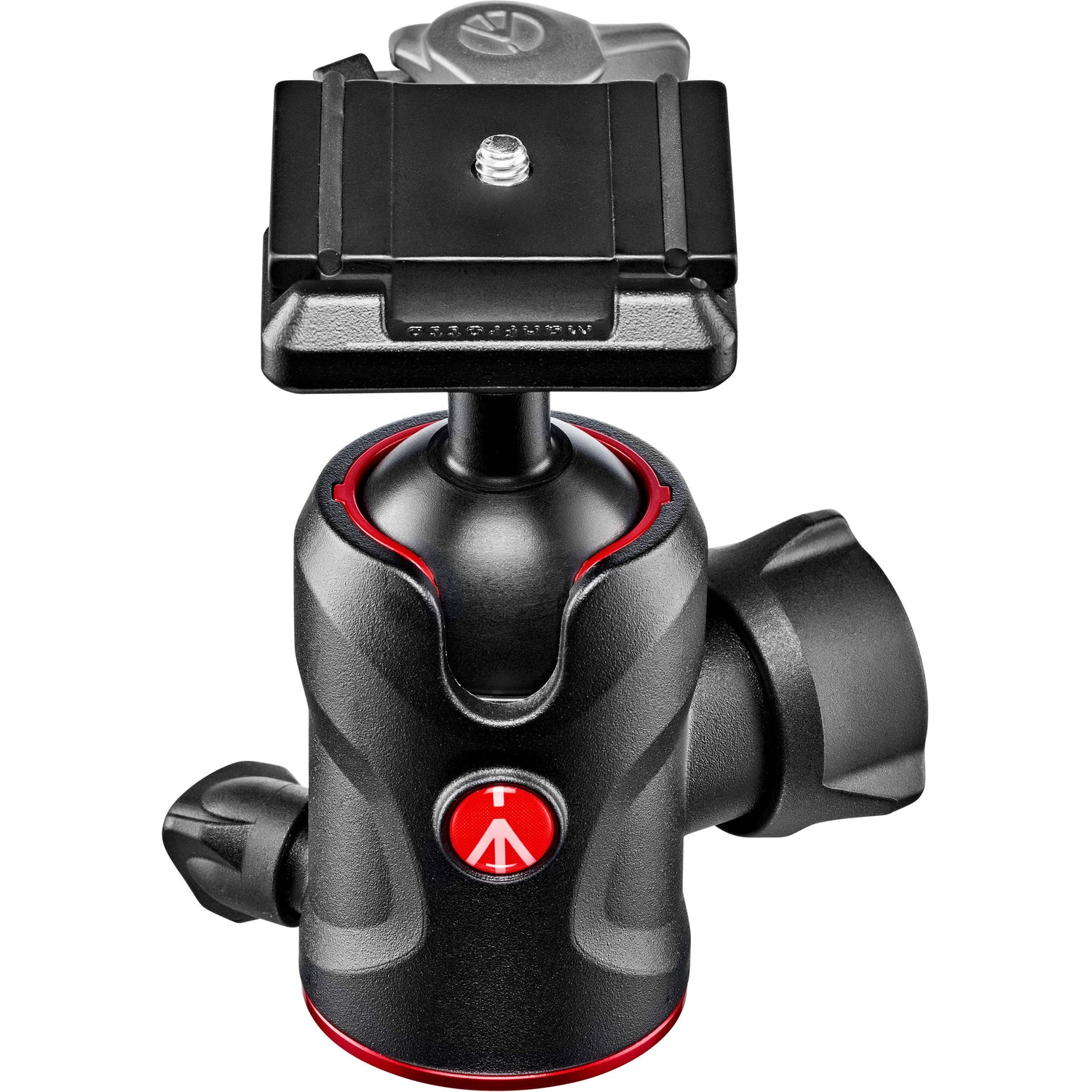

Manfrotto 496 Center Ball Head with 200PL-PRO Quick Release Plate

This Manfrotto 496 Center Ball Head features an integrated RC2 quick release cam lock and a 200PL-PRO Quick Release Plate. Compatible quick release plates can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.

The 496 Center Ball Head with 200PL-PRO Quick Release Plate has a load capacity of 22 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A recessed dial set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.

Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-PRO quick release plate, as well as 3/8"-16 threads via an included bushing adapter. The plate is also compatible with separately available tripod heads that feature an Arca-type clamp.

496 Center Ball Head
22 lb load capacity
Compatible with tripods or support systems that feature a 3/8"-16 mount
Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
Integrated RC2 quick release cam lock
Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
Secondary locking knob allows head to rotate 360°
Dedicated tension control dial for the ball-and-socket joint's movements
Durable, aluminum-alloy construction
200PL-PRO Quick Release Plate
Compatible with Manfrotto RC2 quick release cam lock and Arca-type quick release clamps
1/4"-20 mount with support for 3/8"-16 via bushing adapter
Durable, aluminum-alloy construction
Manfrotto 496 Specs
General
Head Type Ball Head
Base Mount 3/8"-16 Female
Camera Mounting Screw 1/4"-20 Male & 3/8"-16 with Bushing
Quick Release Plate Type Arca-Type, RC2
Load Capacity 22 lb / 9.98 kg
Number of Bubble Levels None
Friction Control Yes
Independent Pan Lock Yes
Material Aluminum
Pan & Tilt Range
Panning Range 360°
Physical
Dimensions H: 4.5" / H: 11.5 cm
Weight 14.1 oz / 400 g
Packaging Info
Package Weight 1.2 lb
Box Dimensions (LxWxH) 6 x 6 x 4"
Manfrotto 496 Center Ball Head with 200PL-PRO Quick Release Plate
