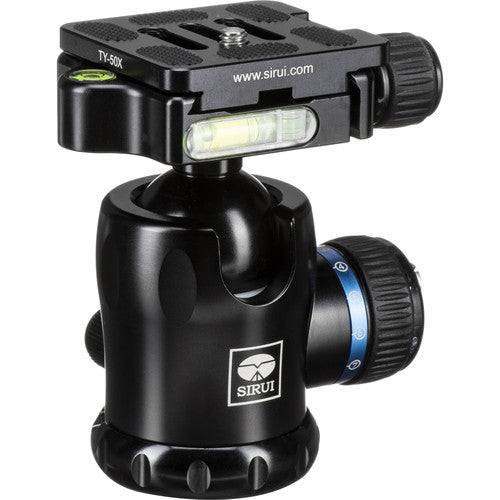

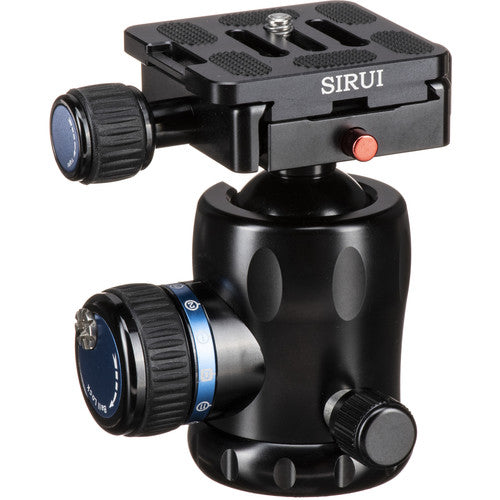

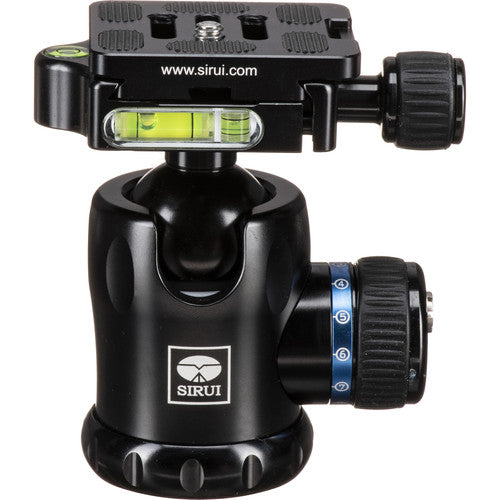

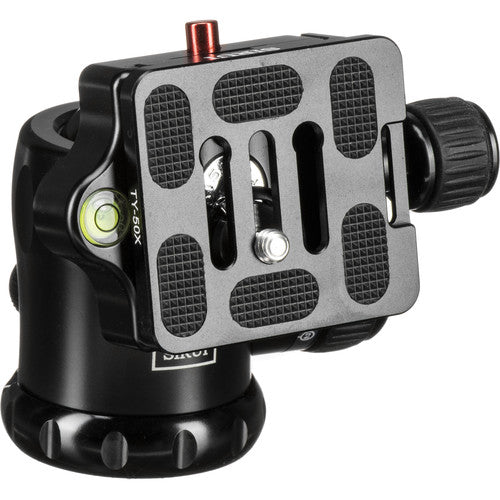

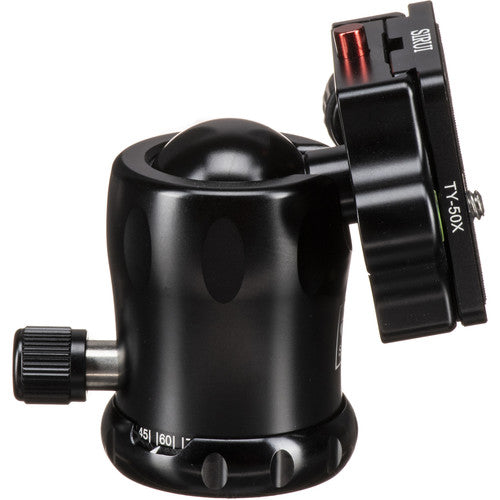

Sirui K-10x Ball Head

The Sirui K-10x Ball Head is an extremely sturdy head with control knobs for pan, tilt, and tension, plus an Arca-style clamp for the included quick-release plate. The pan, tilt, and quick-release knobs are all separate, while the tension knob is integrated into the ball-locking (tilt) knob. The head tilts 90° for portrait orientation, and the quick-release plate features two pop-up pins that prevent camera twist when it's tilted 90°. There's also a video pin on the plate to keep camcorders from twisting.

The interior ball locking of the K-10x head has a sphere tolerance of 0.01mm, and it's equipped with an orientation-memory locking dial. This helps yield a high load capacity of 44 lb. The quick-release clamp features a secondary release button that prevents any inadvertent disengagement of the camera/plate from the clamp, thereby adding to the head's overall security & stability. The Arca-style platform conforms to standard sizes, so you can use compatible plates from other manufacturers.

The three control knobs allow a photographer to exercise extremely fine control over the orientation of the camera, whether it's a DSLR, 35mm, medium-format camera, or even a camcorder. Pan, for instance, can be adjusted while the tilt stays locked, enabling precise movement that's measurable – there are degree markers at the panning base for panoramic photography.

The K-10x is CNC-machined from an aircraft-grade aluminum alloy and anodized with an oxidation treatment that ensures a durable, high-quality finish.

Arca-style quick-release clamp with secondary safety lock
Two bubble levels (horizontal and vertical) on the quick-release platform ensure that your framing hews to the horizon in either portrait or landscape orientation
The friction-control knob, integrated into the ball-locking knob, allows the operator to adjust the resistance of the ball's movement
Quick-release plate is aluminum alloy with a rubberized surface
Stainless steel camera screw
Sirui K-10X Specs
General
Head Type Ball Head
Base Mount 3/8"-16 Thread
Camera Mounting Screw 1/4"-20 Male
Quick Release Plate Type Arca-Type
Load Capacity 44 lb / 20 kg
Number of Bubble Levels 2
Friction Control Yes
Independent Pan Lock Yes
Pan & Tilt Range
Panning Range 360°
Physical
Ball Sphere Diameter 1.30" / 33 mm
Dimensions H: 3.5" / H: 8.8 cm
Weight 0.8 lb / 0.3 kg
Packaging Info
Package Weight 1.145 lb
Box Dimensions (LxWxH) 5.45 x 4.8 x 3.05"in the box
Sirui K-10x Ball Head
Quick-Release Plate
Pouch
Allen Key
