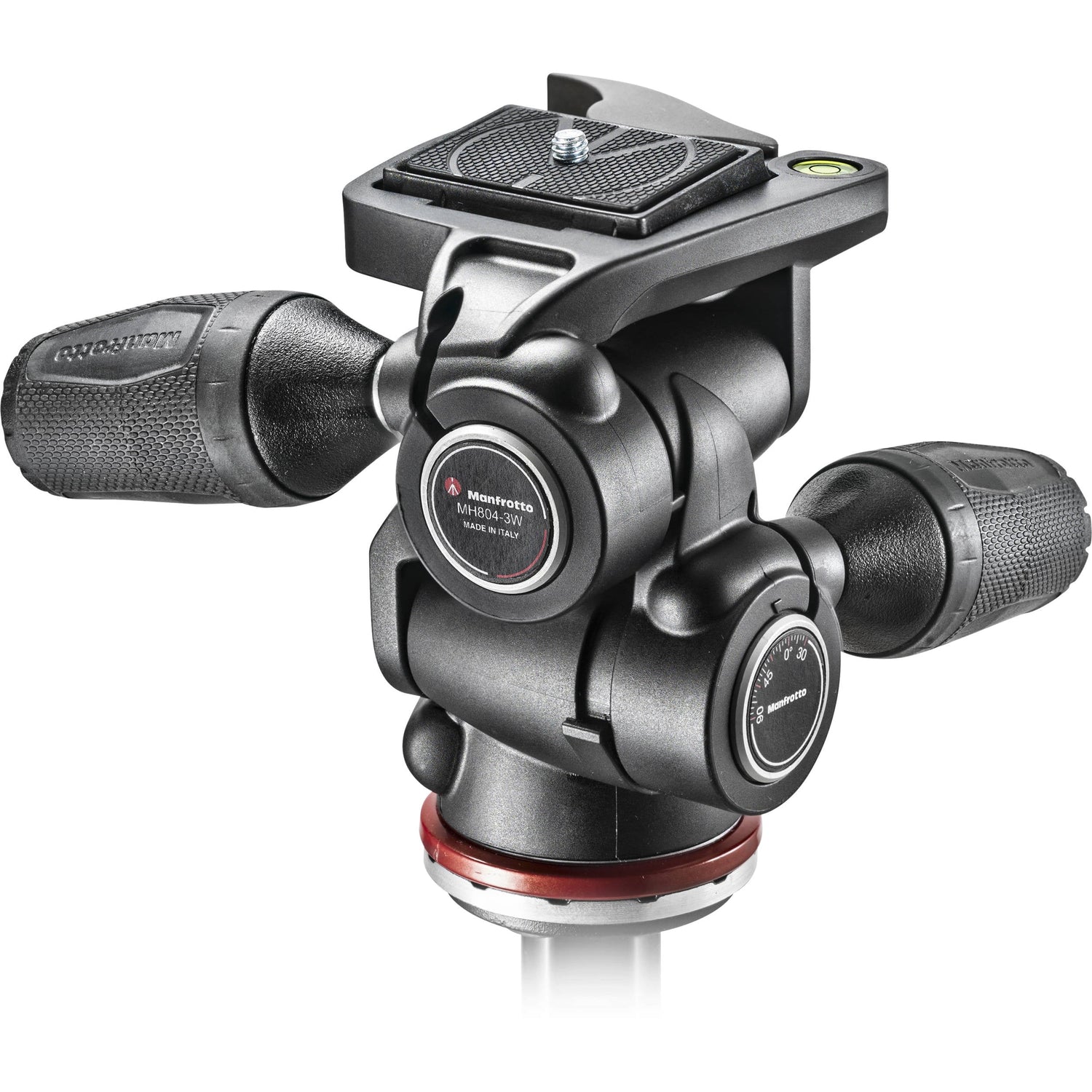

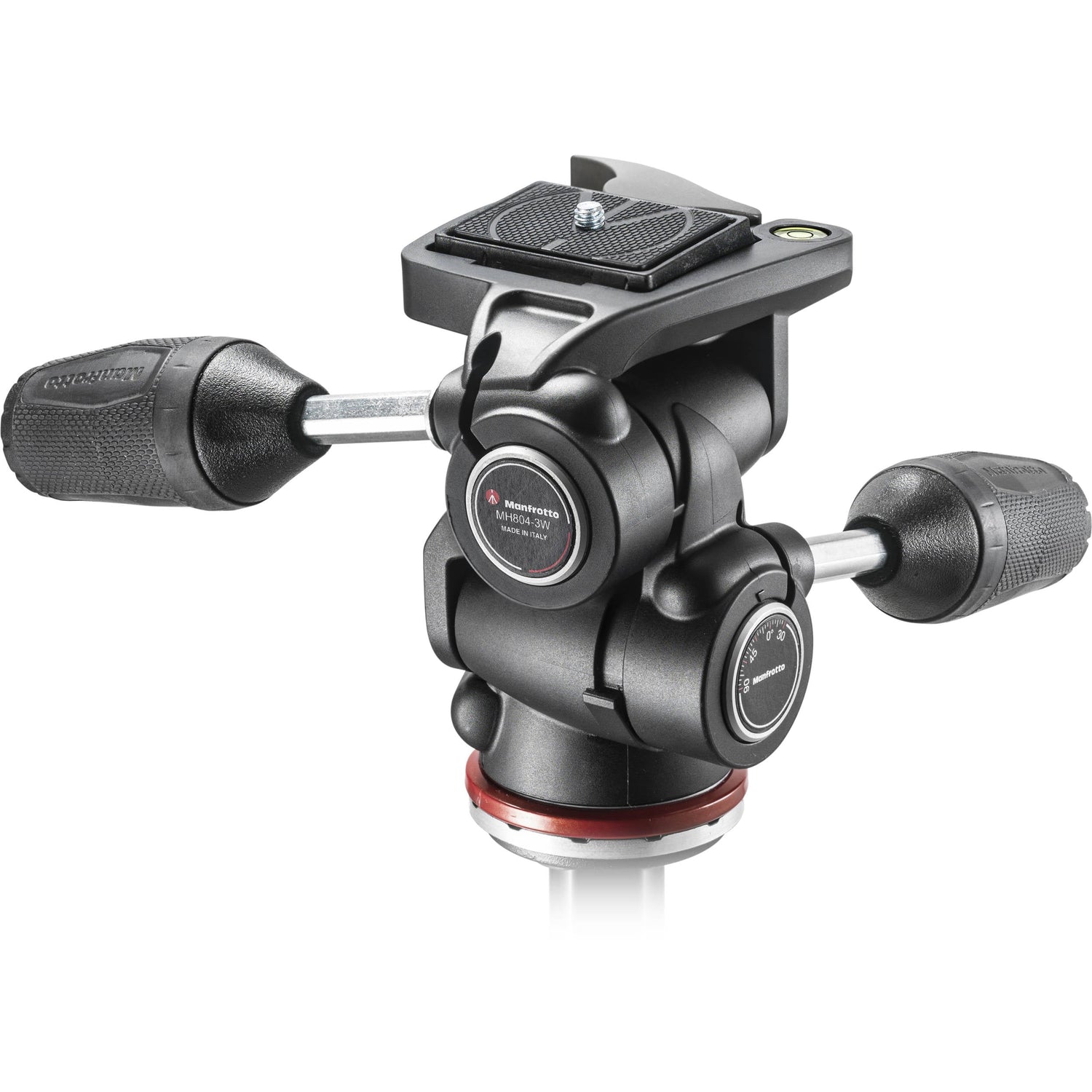

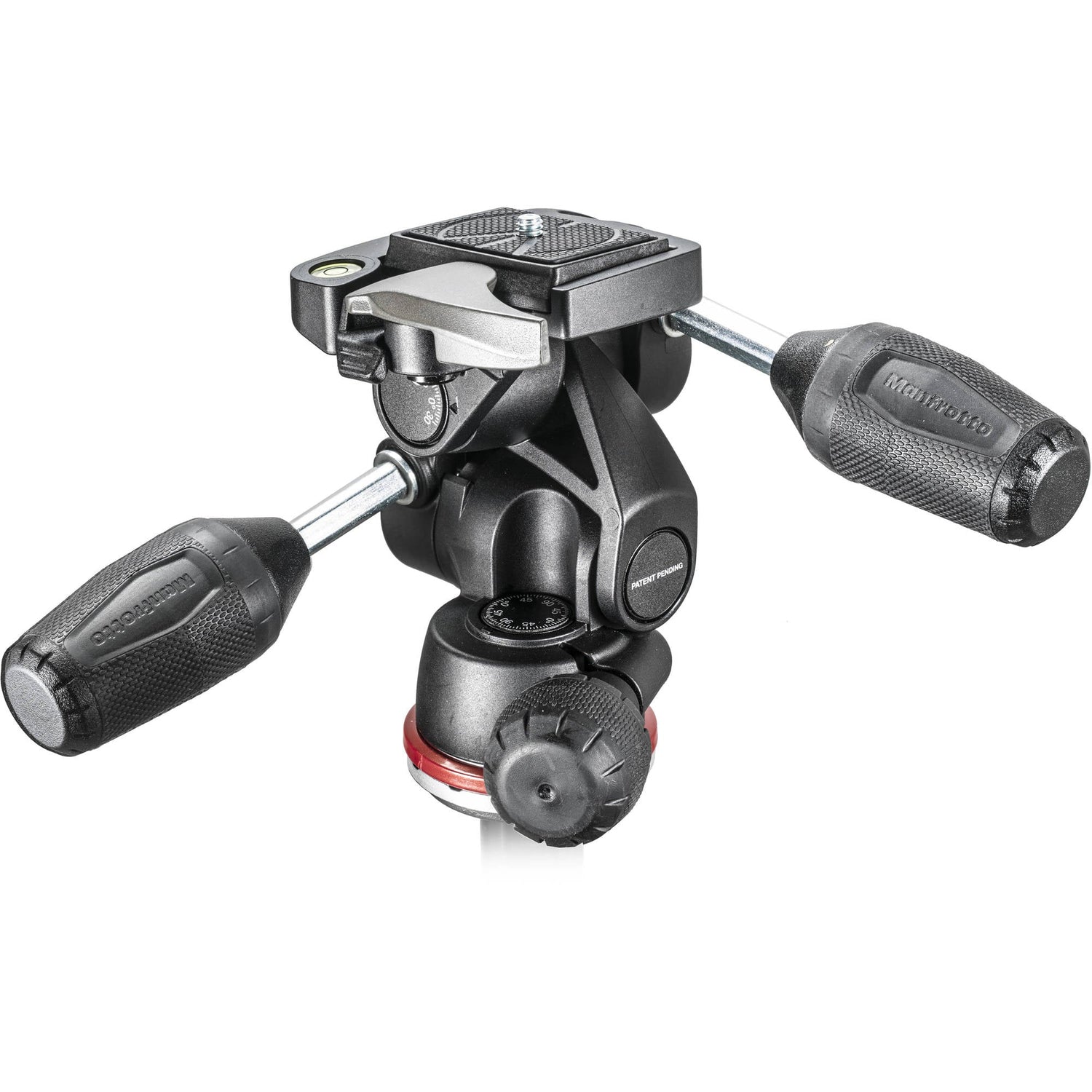

Manfrotto MH804 3-Way, Pan-and-Tilt Head with 200LT-PL Quick Release Plate

This MH804 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 8.8 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200LT-PL Quick Release Plate. RC2 compatible quick release plates such as the 200LT-PL can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached. The cam lock also features a safety catch to prevent the 200LT-PL, or another compatible quick release plate from accidentally disconnecting.

Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other, have dedicated control handles, and can be locked into place. In addition to integrating the ability to individually lock the movements by twisting each corresponding handle's rubberized grip, the telescoping control handles for both tilt functions can also be retracted while the head is not in use for more convenient storage or transport.

To promote fast, repeatable, and accurate device positioning, this MH804 3-Way, Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. For heavier loads, built-in counterbalance springs help ensure smooth as well as gradual backwards and forwards tilt movements.

MH804 3-Way, Pan-and-Tilt Head
8.8 lb load capacity
Compatible with tripods or support systems that feature a 3/8"-16 mount
Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other, have dedicated control handles, and can be locked into place

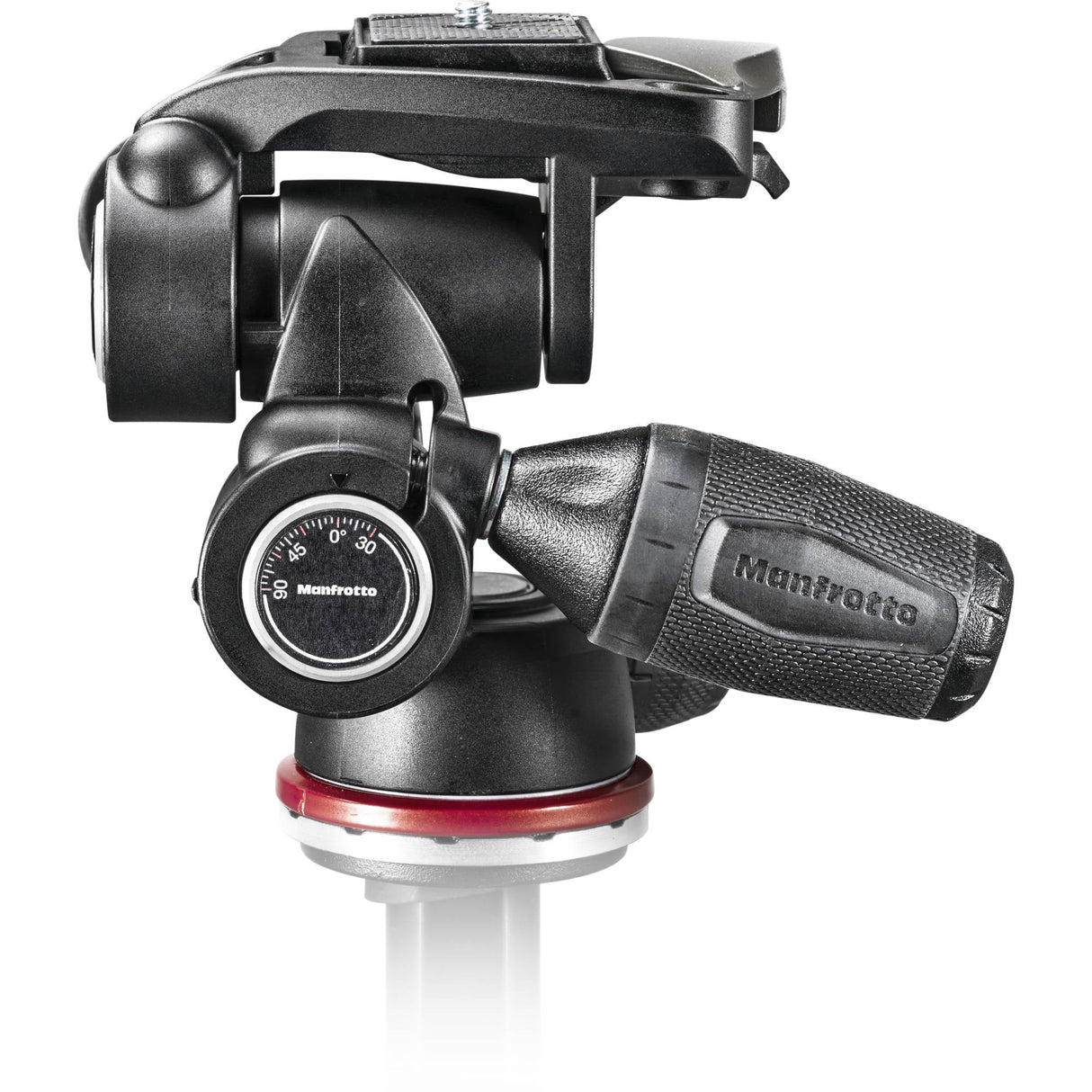

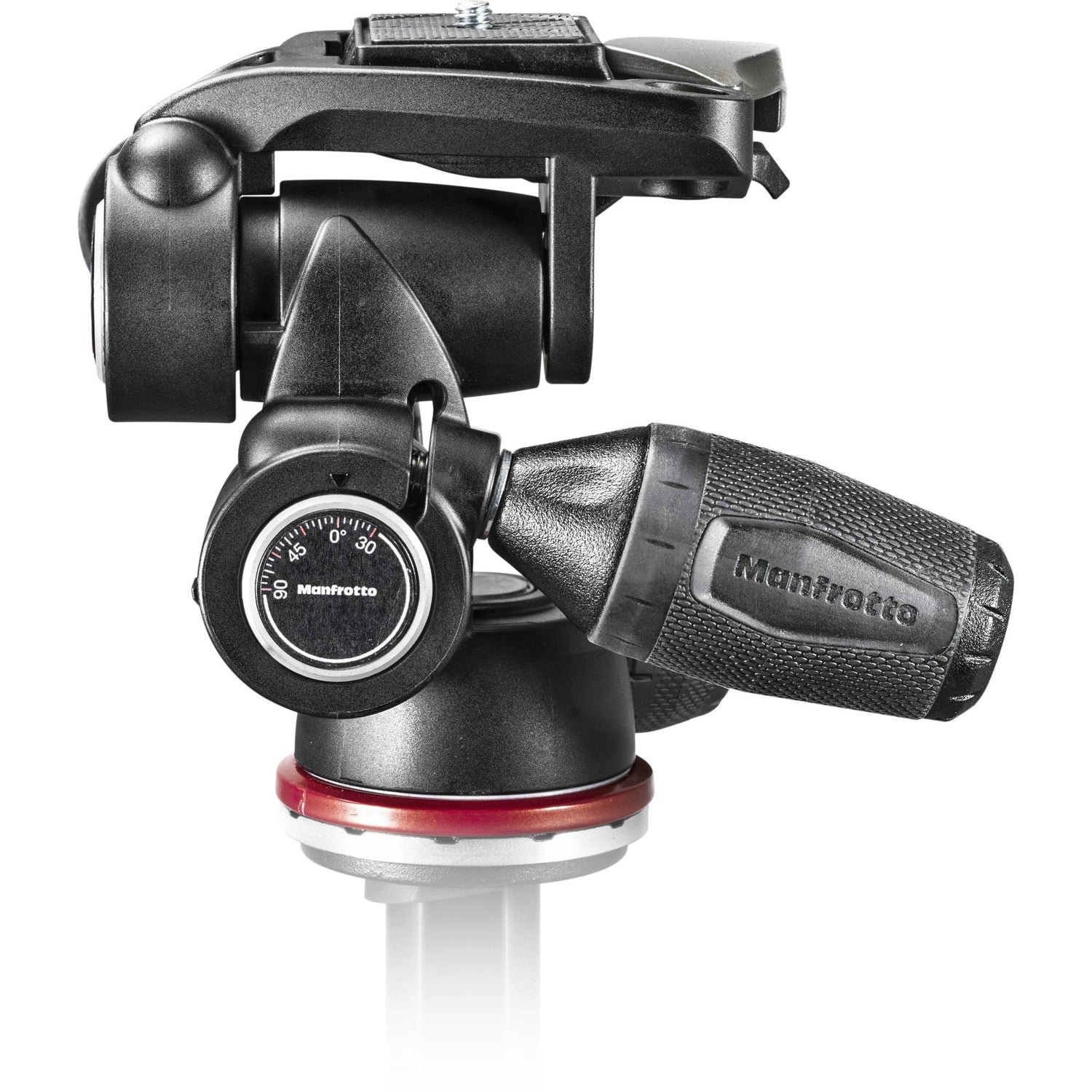

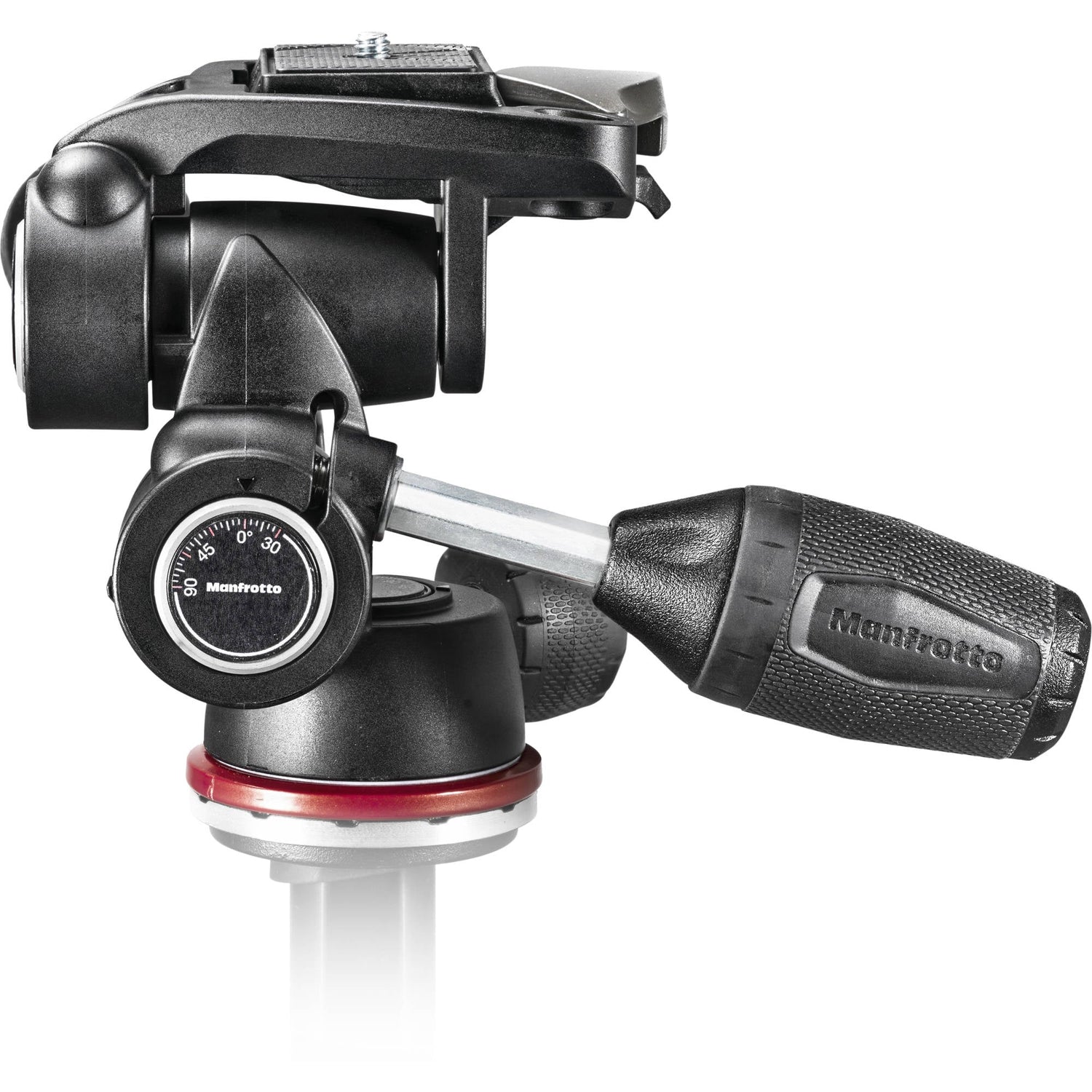

Telescoping control handles for both tilt functions can be retracted for more convenient storage or transport
Dedicated angle scales for each movement that are designed for easy visibility promote fast, repeatable, and accurate device positioning
Built-in counterbalance springs help ensure smooth as well as gradual backwards and forwards tilt movements for heavier loads

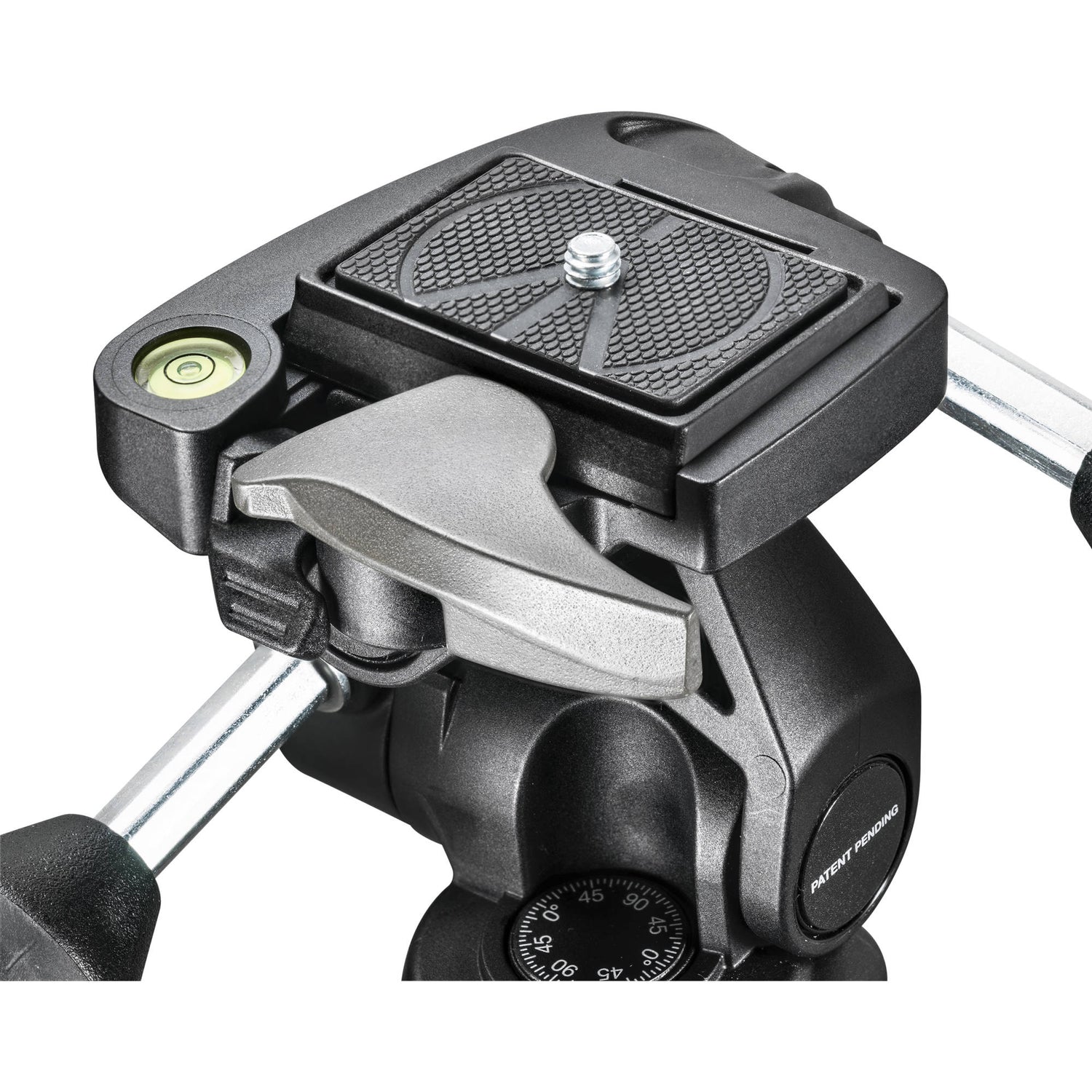

Integrated, RC2 quick release cam lock
Built-in bubble level
Durable and lightweight polymer and fiberglass construction

Manfrotto 804 Specs
General
Head Type Pan & Tilt Head
Base Mount 3/8"-16 Thread
Camera Mounting Screw 1/4"-20 Male
Quick Release Plate Type RC2
Load Capacity 8.8 lb / 3.99 kg
Number of Bubble Levels 1
Material Technopolymer
Pan & Tilt Range
Lateral Tilt -90° to +30°
Vertical Tilt -30° to +90°
Panning Range 360°
Physical
Dimensions H: 4.7" / H: 11.9 cm
Weight 1.65 lb / 750 g
Packaging Info
Package Weight 2.205 lb
Box Dimensions (LxWxH) 6.4 x 6.4 x 6"
